AA30/070526/AX/
Carbon Staple Fibre Yarn Coating Installation
Year: 2013
Comprising:
Texkimp Flanged bobbin yarn creel with tensioners brake
Year 2013
60 positions (double sided 30 per side)
Mesdan pneumatic Jointair splicer
Coating
In house design and manufacture Year 2013
27 yarn end feed from Texkimp creel through pair rubber feed rollers with pneumatic pressure
1 pair direct drive feed rollers with pneumatic pressure
Stainless steel coating bath with pair stainless rollers
1 pair direct drive rubber covered squeeze rollers with pneumatic pressure
IBC Size chemical box with pumps and return valves
Sizing unit
Caltherm Electric Carbon Fiber Dryer
Year 2013
Electric heating maximum temperature 200deg C 110 Amp
Roller feed
5 horizontal level pass chambers hot air
Exit via pair of pneumatic pressure rollers

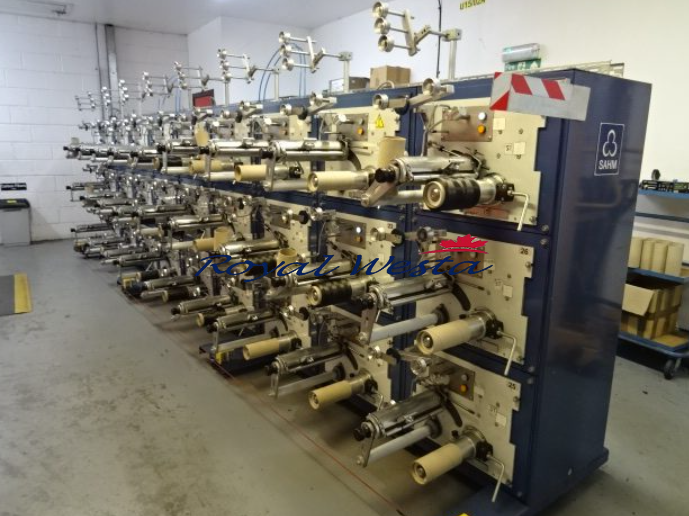

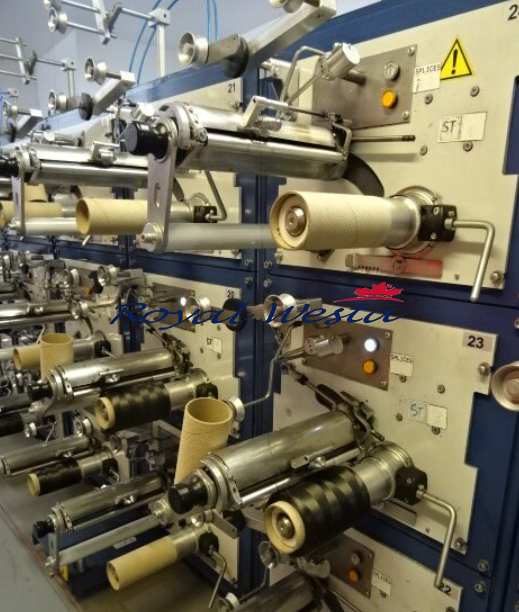

Sahm Precision Cross Winding
Model 260XE Year 2013
27 winding positions ( 300mm traverse)
Winding onto tube 190mm traverse dia. ID 75mm
Maximum diameter 250mm
Mesdan Testing Equipment
Mesdan Yarn Twist tester Year 2013
Mesdan Wrap Reel 1660m Year 2013
