Carbon Fibre Yarn Spinning and Coating Line

Carbon Fibre Spinning Equipment
IP65 rated for carbon fibre

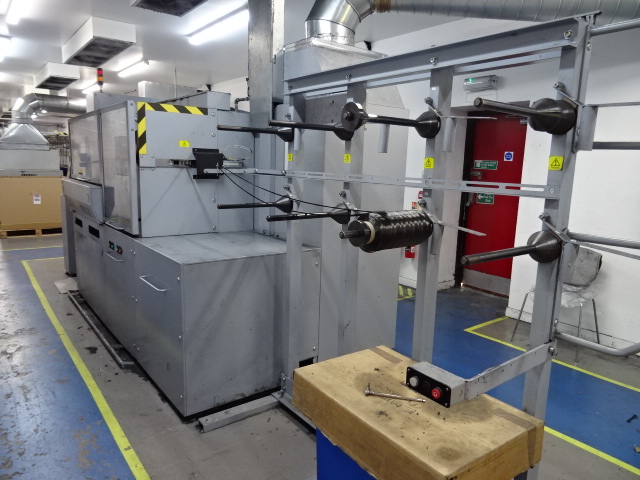

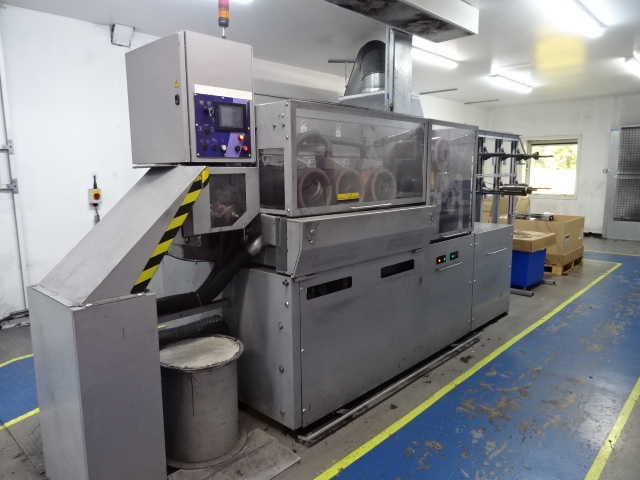

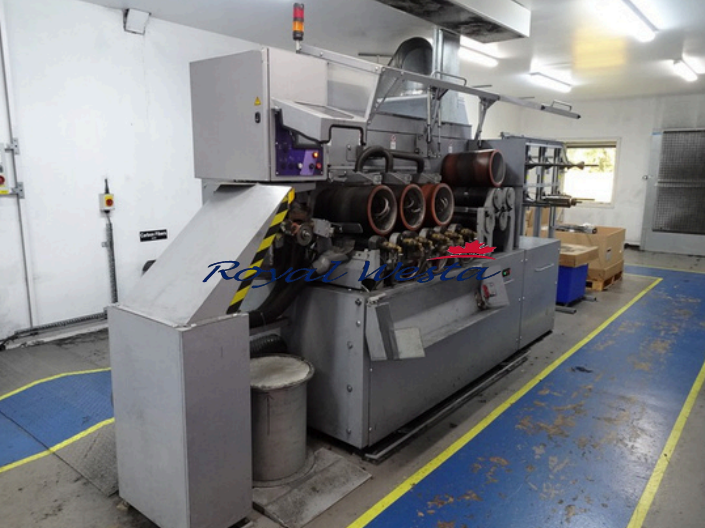

Seydel NSC Schlumberger Converter FB20
Model FB20 Year 2013
8 end creel for continuous filament tow packages with tension control.
(300mm tubes ID74mm 260mm traverse 200mm diameter)
The FB20 model is used in a short in-line breaking process consisting of one pre-stretching block followed by three breaking heads.
(N Schlumberger developed the FB20 stretch breaker especially designed for technical fibres. These fibres can be carbon fibres, glass fibres, metallic fibres, para or meta-aramids fibres, polyethylene (HMPE), polytetrafluoroethylene (PTFE) .All these fibres are used in composites parts thanks to their exceptional technical characteristics (high tenacity, elongation, stiffness etc.)
Pre- stretching – Single Rubber roller dia 280mm x 400mm with a pair of tension cylinders dia.150mm.

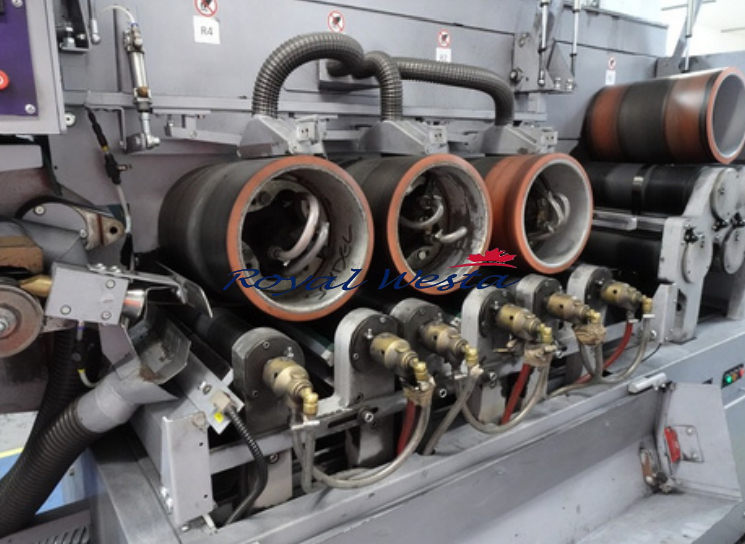

Breaking section – 3 off Rubber rollers dia 280mm x 400mm with 3 pairs of breaking cylinders dia.75mm.
Fibre trumpet and dual delivery rollers.
Delivery into can dia. 400mm x 500mm.
Cooling unit

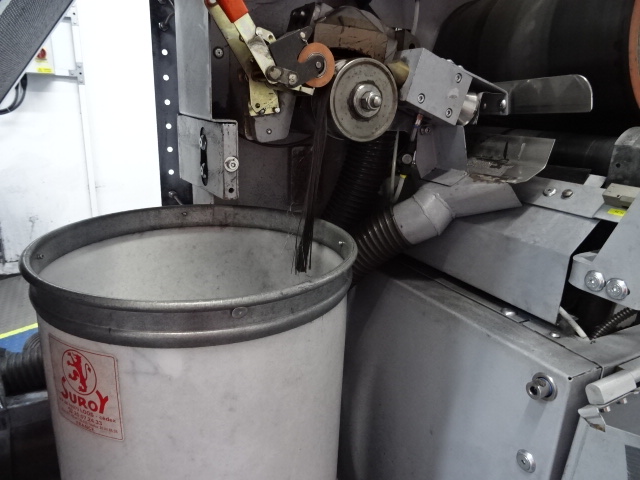

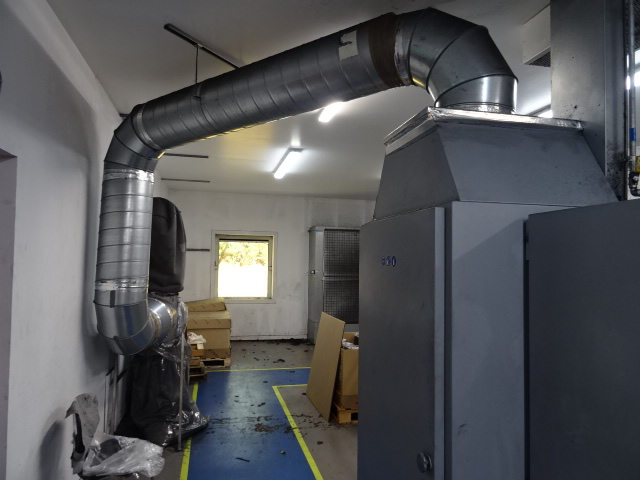

Dust extraction cabinet with dust collecting.

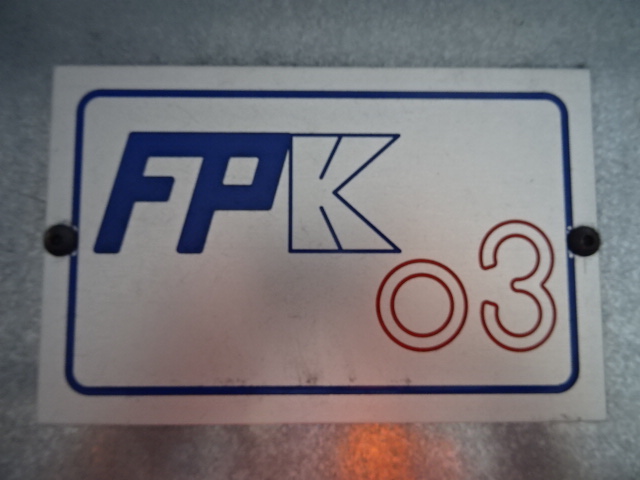

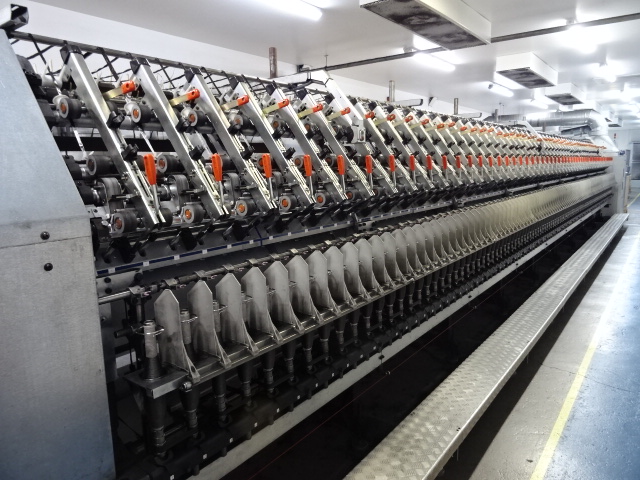

Gaudino Ring Spinning FPK03

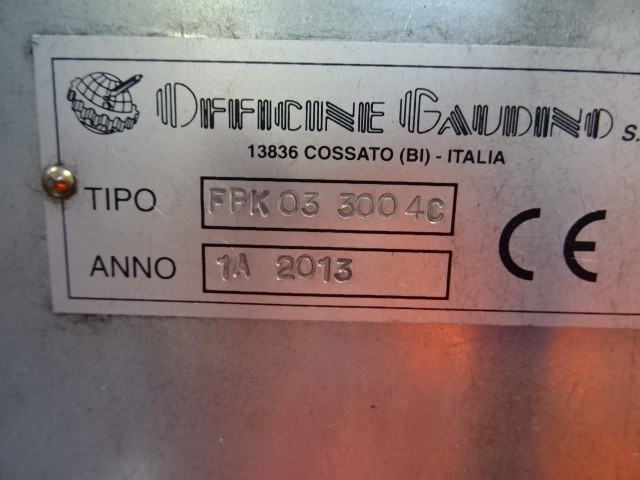

Model FBK03 300 4C Year 1A 2013
108 spindles 110mm pitch 65mm ring diameter.

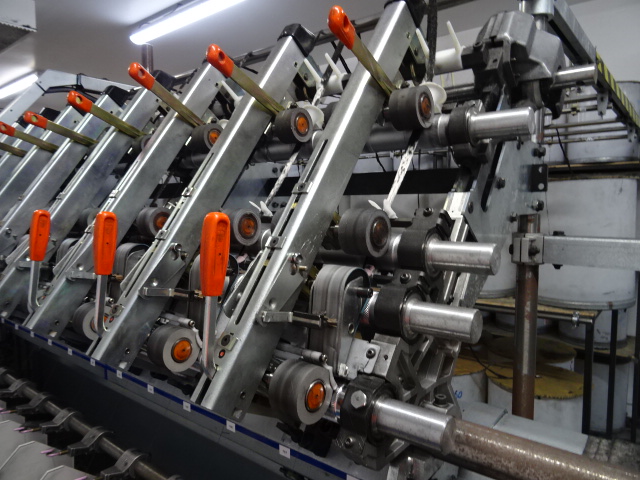

4 roller double draft

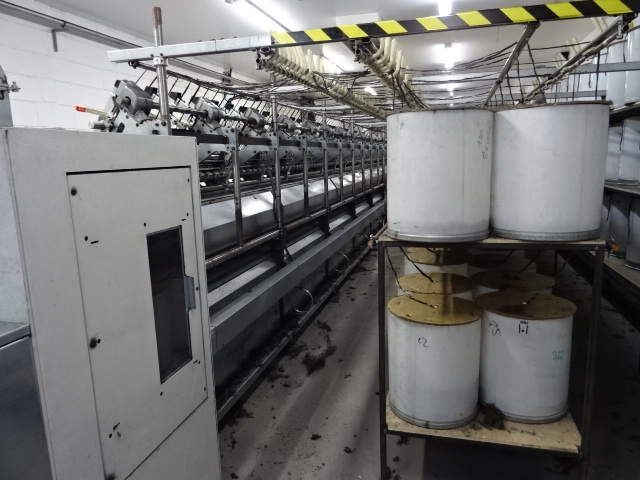

Can creel, 3 rows
Pneumafil and dust extraction

Gaudino Ring Twisting BRH
Model BRH 300 2x1 5232 A Year 2013
56 spindles (double sided 28 per side) 300mm pitch 133mm ring diameter

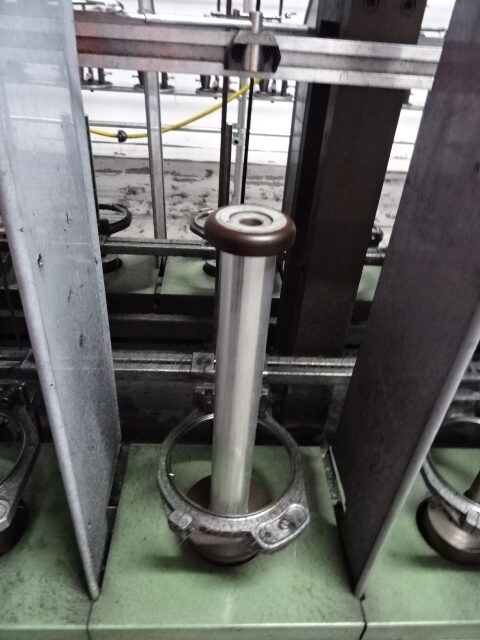

360mm flanged tube
2 fold creel with 2 yarn detectors, texera tension units
2 Mesdan pneumatic Jointair splicers

Carbon Staple Fibre Yarn Coating Installation Year 2013 comprising:
Texkimp Flanged bobbin yarn creel with tensioners brake
Year 2013
60 positions (double sided 30 per side)
Mesdan pneumatic Jointair splicer

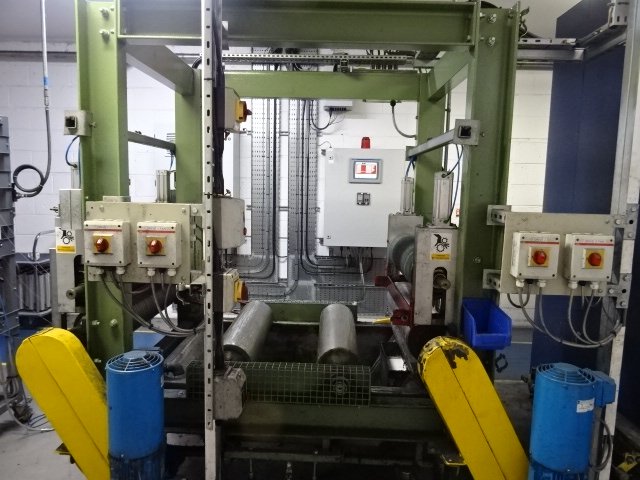

Coating
In house design and manufacture Year 2013
27 yarn end feed from Texkimp creel through pair rubber feed rollers with pneumatic pressure
1 pair direct drive feed rollers with pneumatic pressure
Stainless steel coating bath with pair stainless rollers
1 pair direct drive rubber covered squeeze rollers with pneumatic pressure

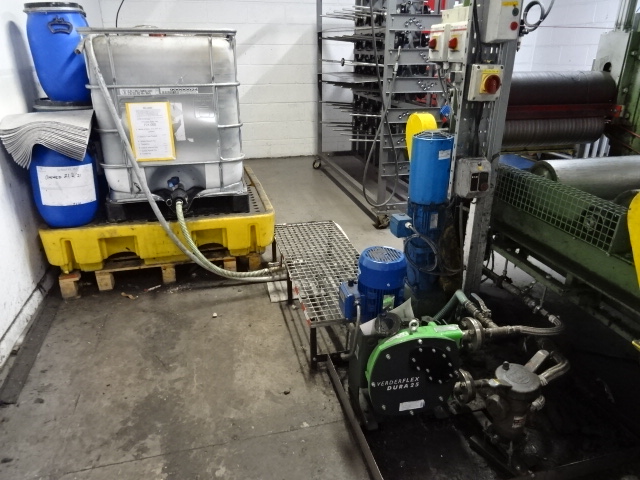

IBC Size chemical box with pumps and return valves

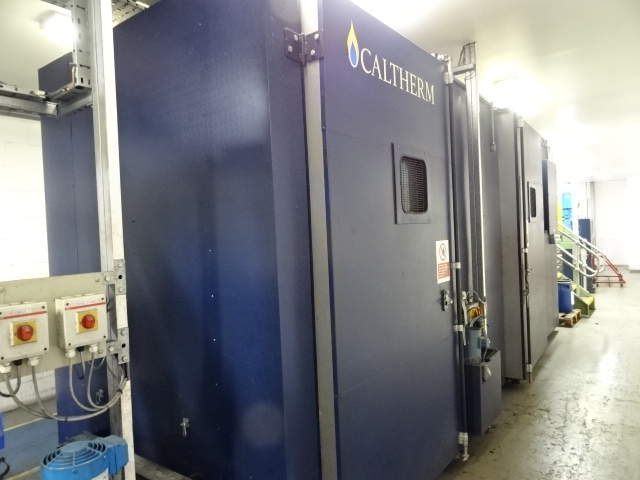

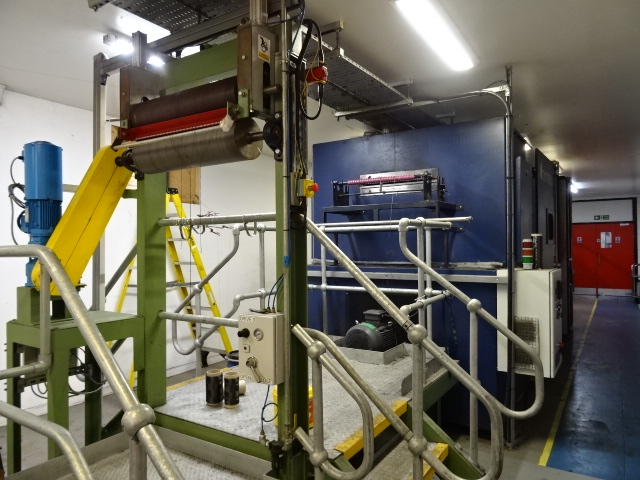

Caltherm Electric Carbon Fibre Drier
Year 2013
Electric heating maximum temperature 200deg C 110 Amp
Roller feed
5 horizontal level pass chambers hot air
Exit via pair of pneumatic pressure rollers

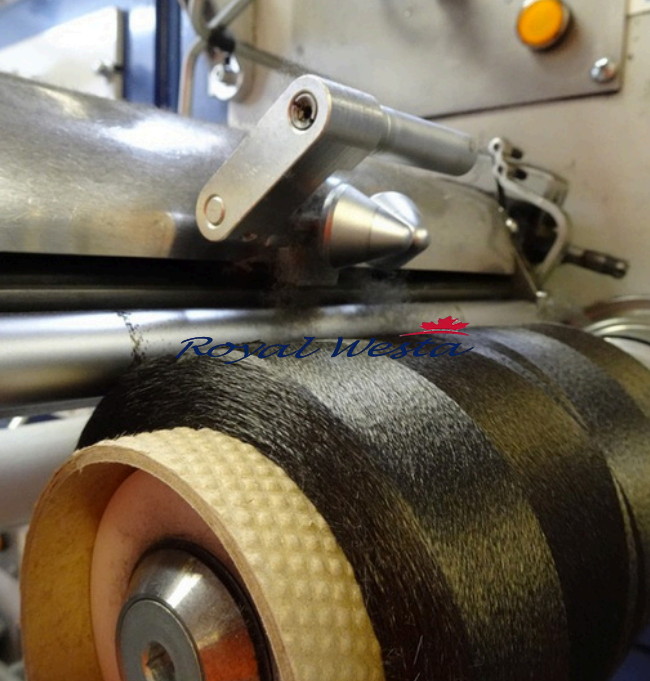

Sahm Precision Cross Winding
Model 260XE Year 2013
27 winding positions ( 300mm traverse)
Winding onto tube 190mm traverse dia. ID 75mm
Maximum diameter 250mm

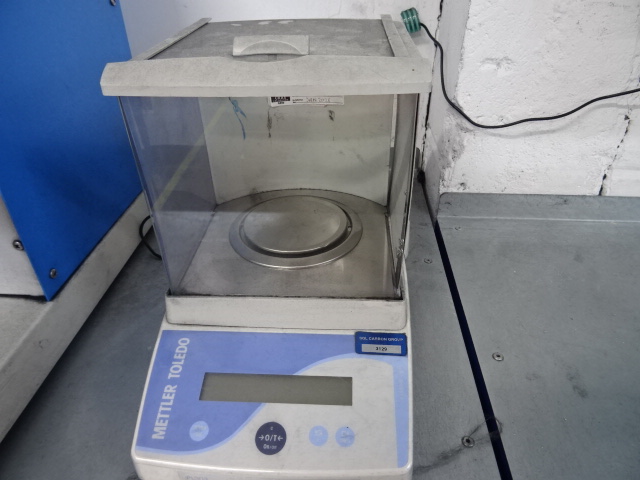

Mesdan Testing Equipment

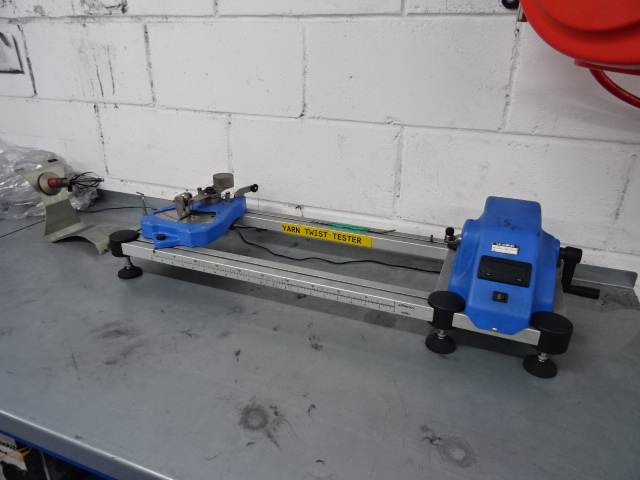

Mesdan Yarn Twist tester Year 2013

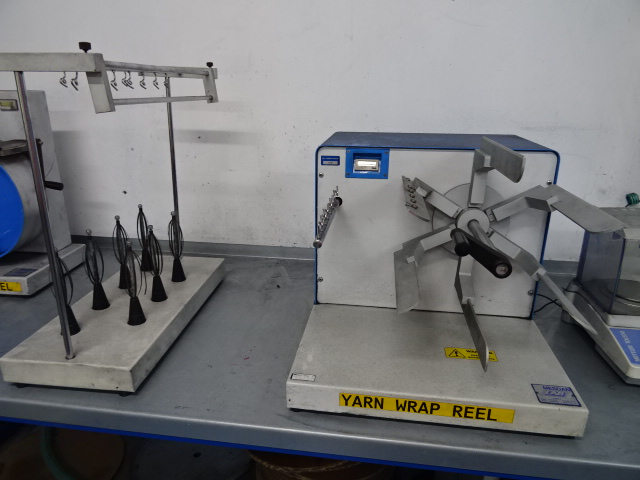

Mesdan Wrap Reel 1660m Year 2013
