Brugman Continuous Rope Fabric Bleaching

Year: 1990
Range 3200mm
Stainless Steel
A Frame feed 3200mm

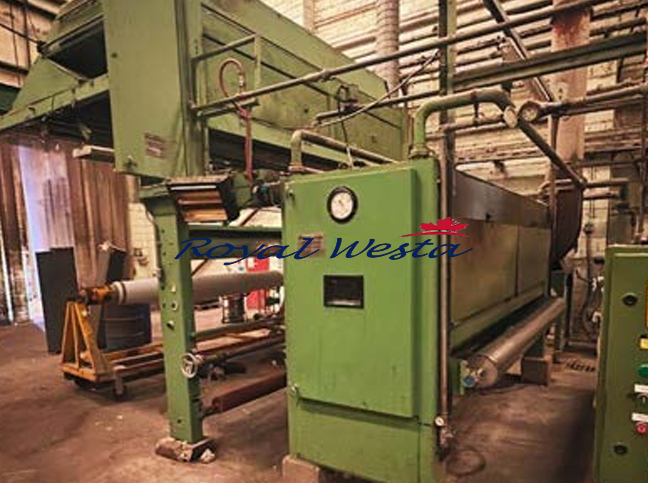

Osthoff-Senge Brushing and Singeing 3200mm Model PK86 no 624
With brushing 3200mm and vacuum unit
De-Sizing wash box 3200mm (Brugman)
2 x Stainless Steel Mixing tanks for enzymatic desize chemicals
Rope feed to:
4 off Greige Pit with traversing carriage

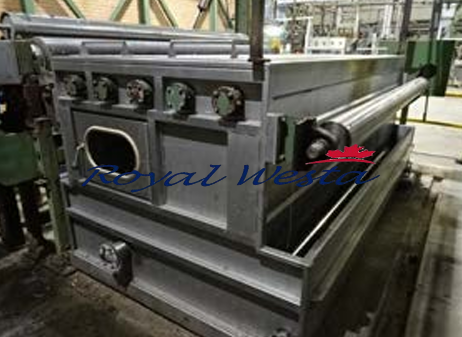

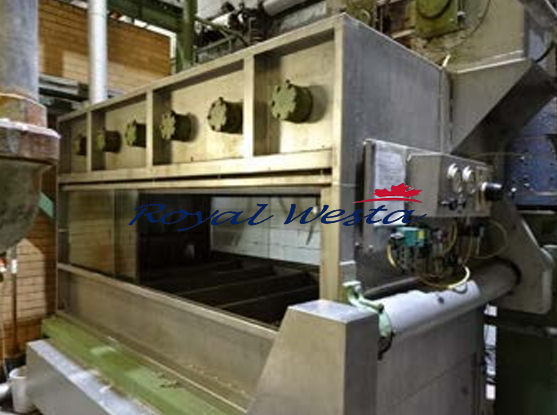

Wash tank no1. (All wash tanks 1200mm width for rope fabric)
Caustic Saturation

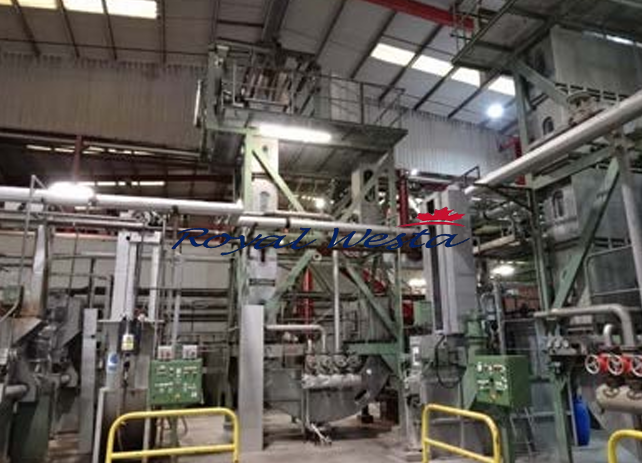

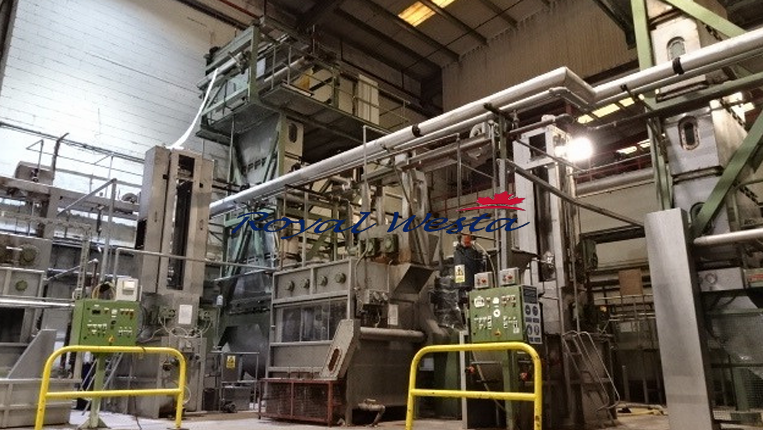

J box steamer no 1.
Wash tank no 2.
Wash tank no 3.
Sodium Hypochlorite Saturation unit
J Box no 2. for dwell (can be used with steam)
Wash tank no 4.
Peroxide saturation unit
J Box Steamer no 3. for final bleach process
Wash tank no 5.
Wash Tank no 6.
Pull Up unit with traversing carriage creel
5 off rope fabric storage pits
Croft pull up unit to:
Hall & Boyden Cloth Opener to 3200mm full width

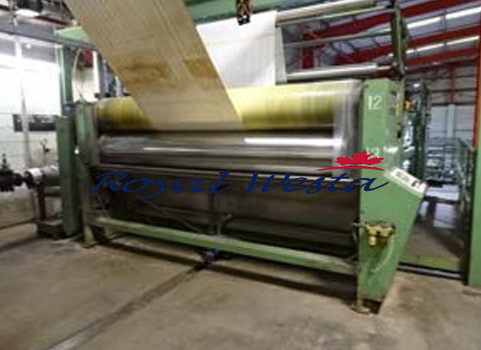

Hall Boyden Squeeze Roller 3200mm

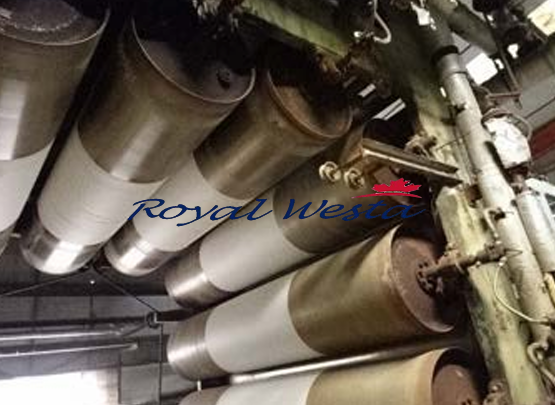

Drying Cylinders (25 off) 3200mm
Hall Boyden Batching unit 3200mm

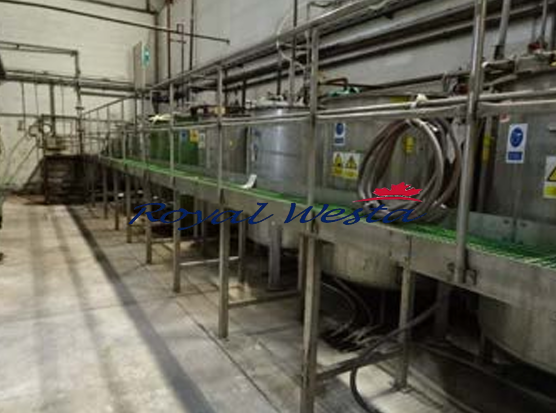

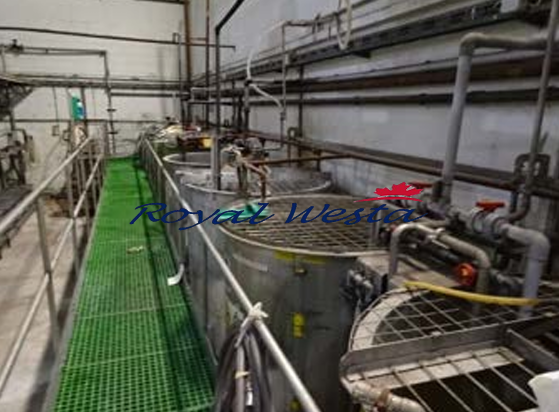

8 off Stainless Steel chemical mixing tanks on new Stainless Steel Walkway
Notes:
The line with suitable guiders can be used for both single width and 3200mm fabric.
Greige Fabric Brushing and Knocking 3200mm comprising:
Bailing Conveyor – Length Entry track – 7.25mtrs – Coveyor belt 9.5mtrs – Unpacking table 80cm – Belt width 134cm
Brushing/Knocking unit 3200mm
Fabric openers for wide width fabric and Bianco internal fabric guiding unit. A frame batching Batching frame 3200mm.
