Bruckner Stenter
STENTER/HEATSETTING FRAME

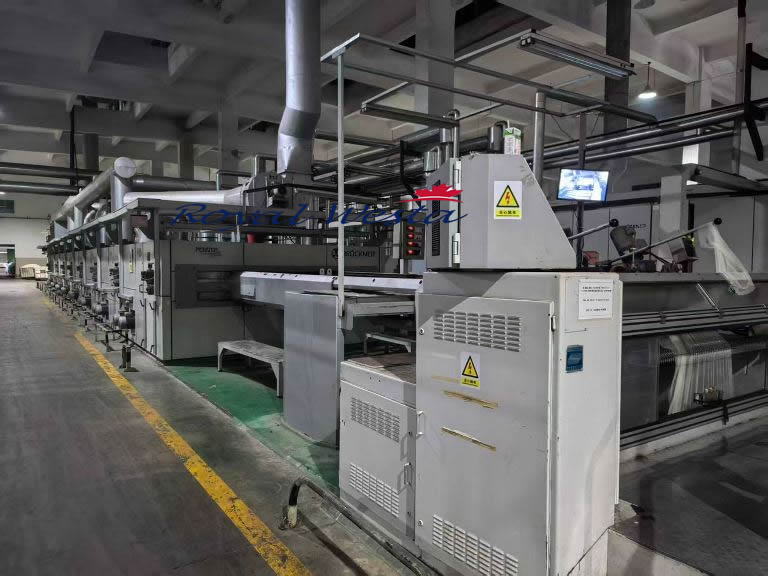

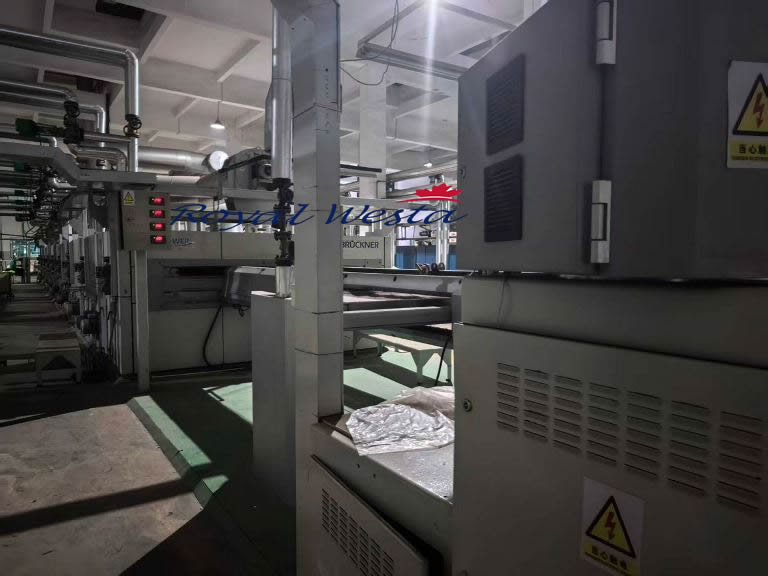

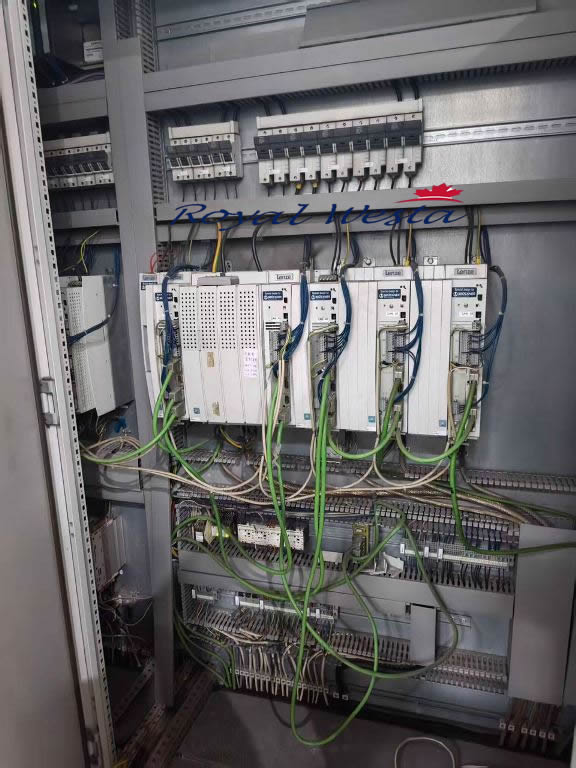

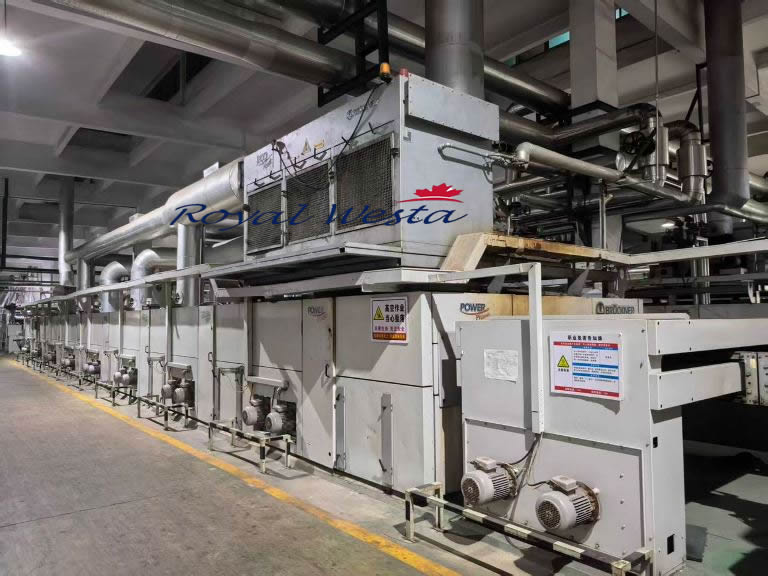

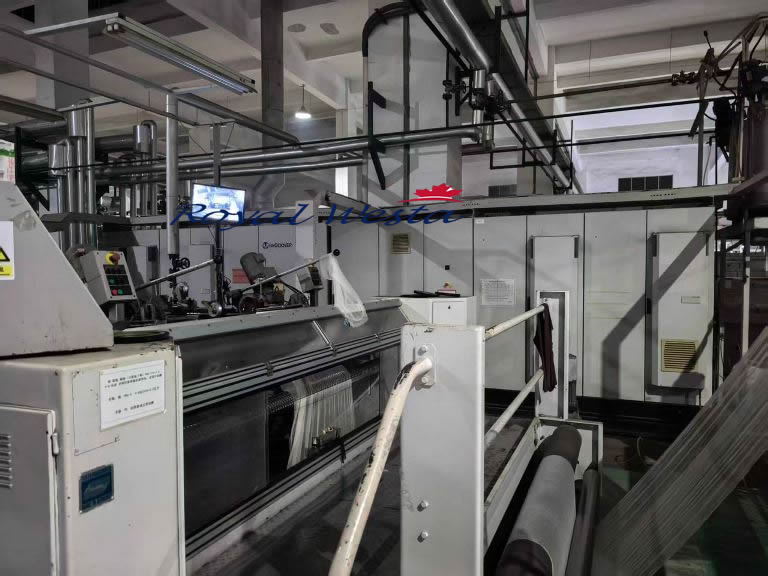

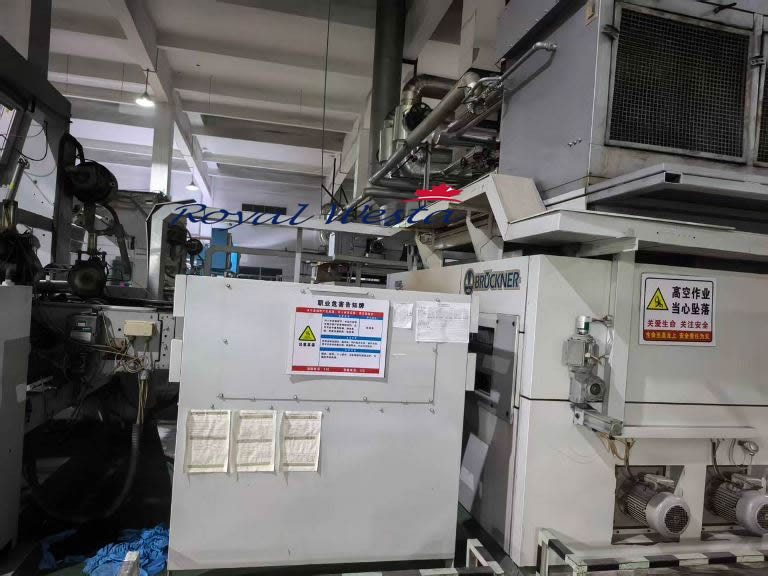

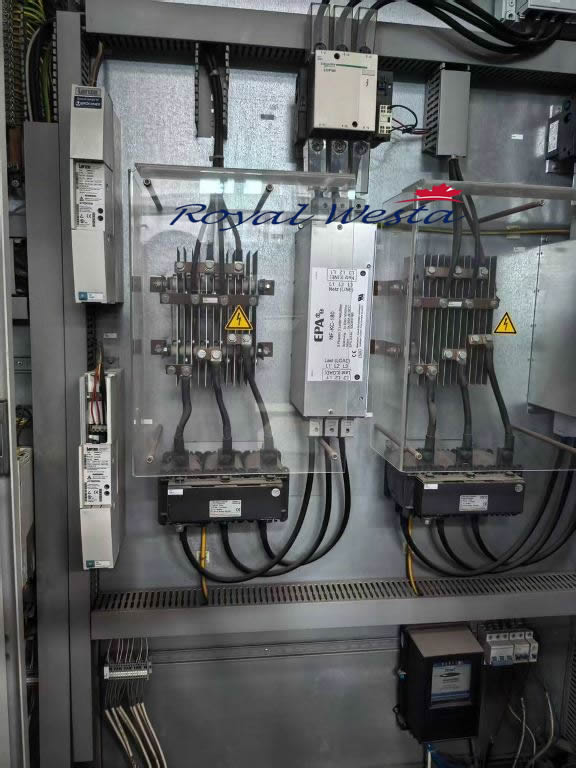

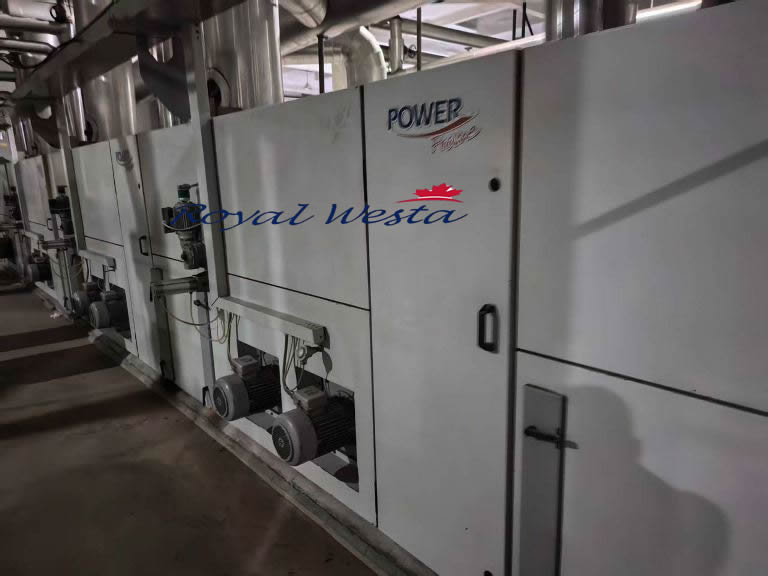

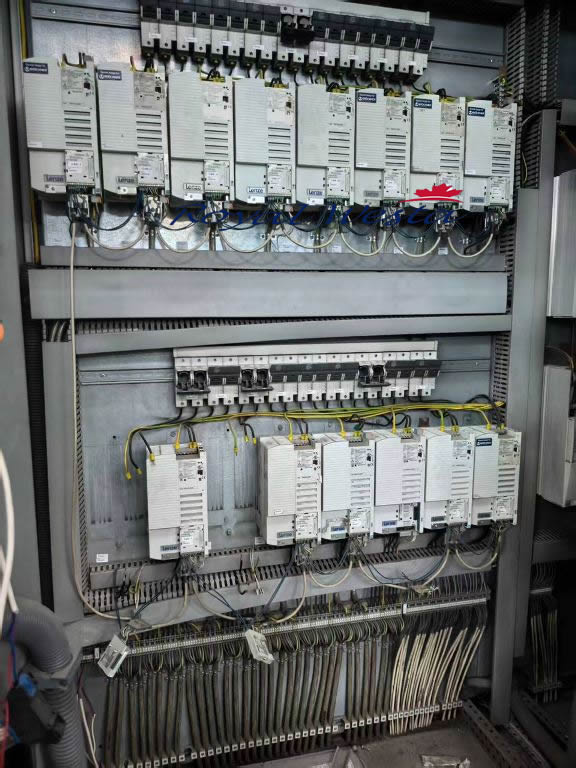

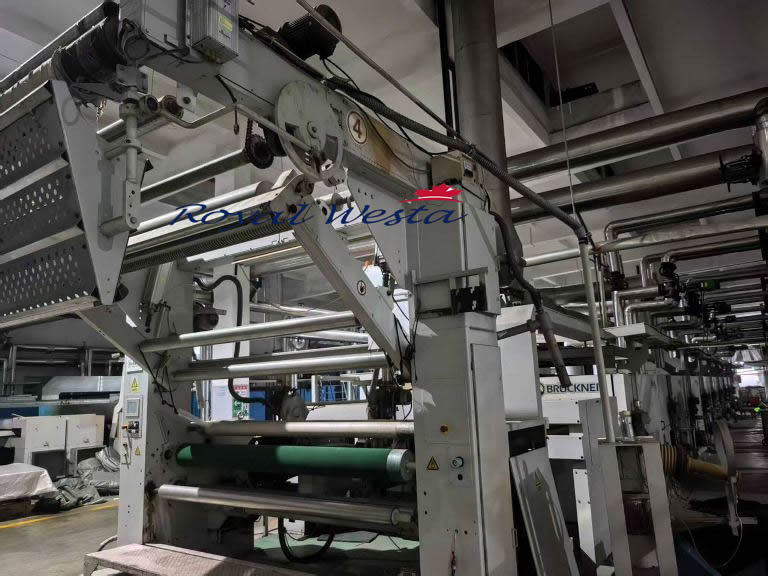

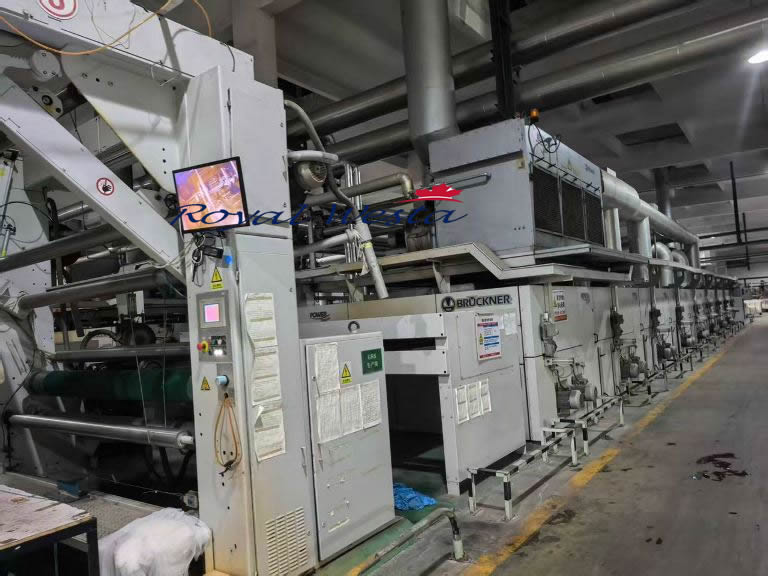

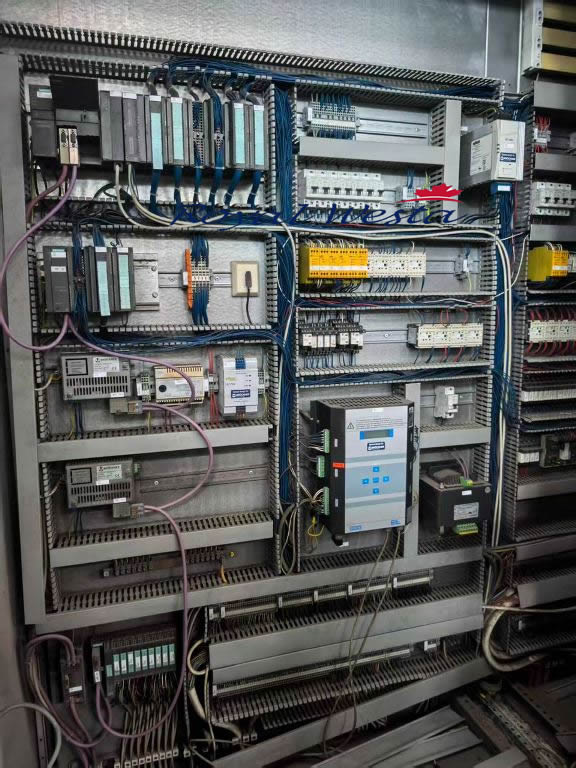

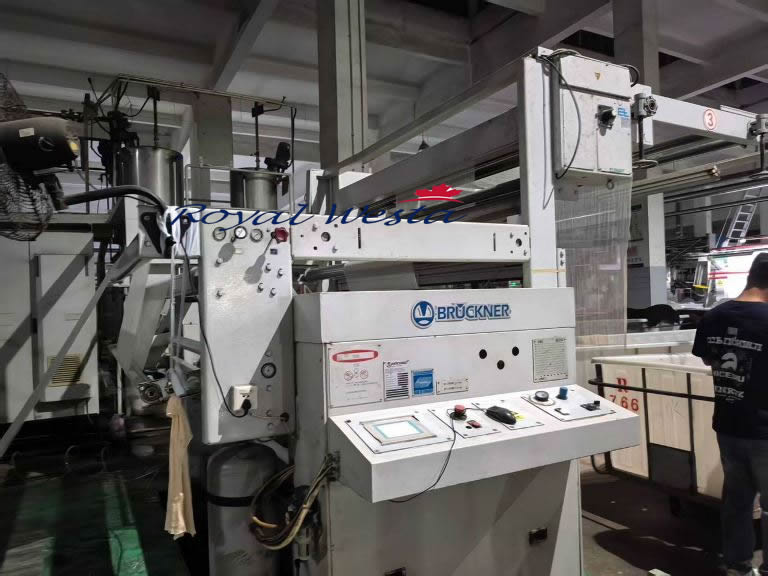

Year: 2003/2004, type HN 28/6, 6 chambers gas heated, CLIP CHAIN, upper roller width 3.000 mm, suitable for a fabric width of 600 mm upto 2.800 mm, variable adjustable, comprising out of cloth feeding by tensionfree separate unwinding device, entrance into fabric compensator by dancing roller with capacity of approx. 8 mtr, feeding via rotary expanding rollers into 2 roll application and squeezing mangle make MENZEL, deviation and fabric feeding rollers by stainless steel into PLEVA weft/bow straightener with visualisation, SIEMENS SIMATIC MULTI PANEL installed at the entrance as well as at the exit, stainless steel guide and feeding rollers into stnter frame with ERHARDT & LEIMER expanding device, ERHARDT & LEIMER optoelectronic width control type FR5502, horizontal clip chain, working panel at entrance made by SIEMENS, 6 chambers gas heated with 6 gas burner left side, 6 burner right side type BRÜCKNER RM 100 VER 3.10, cooling zone, WEFT STRAIGHTENER made PLEVA type SD1, PLEVA humidity control type TDS 95, fabric delivery onto big batch winder, LENZE INVERTER, SIEMENS S7, electronic panel boards are equipped with AIR CONDITION DEVICES
chain type SK936 K VII MOD
entrance field 3,0 mtr
exit field 3,0 mtr
split flow system with separate air circulation for upper and lower air by hot fans
max temperature 230°C

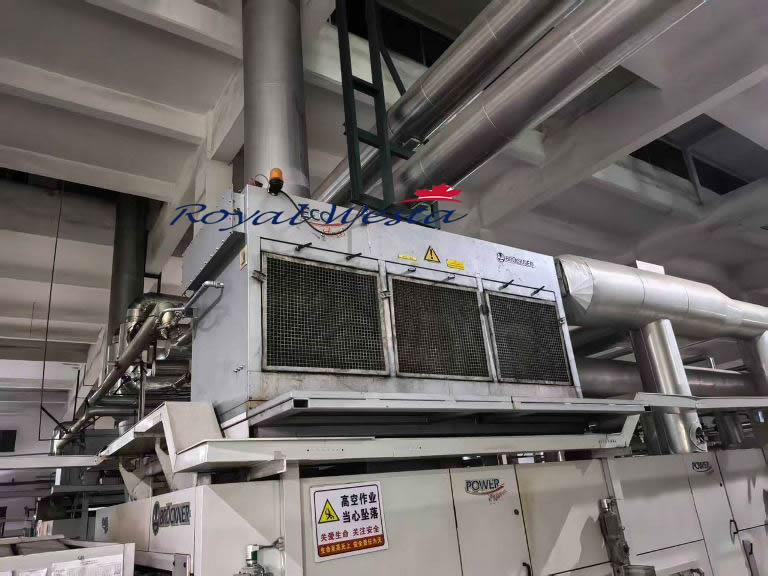

exhaust volume 9.000 m³ fan 1, 9.000 m³ fan 2
2 exhaust fan
max winding diameter 2.000 mm
Machine is Excellent quality and in production
