Air Jet Weaving Plant

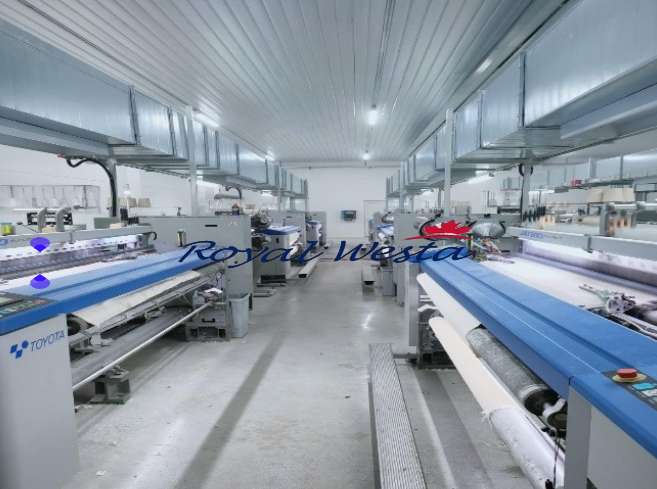

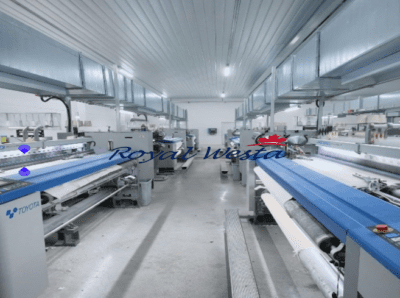

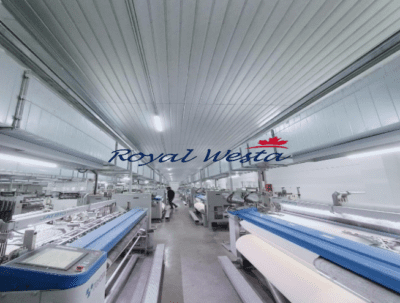

10x TOYOTA Air Jet Looms
Year of Manufacture 2021 with 8 frames (12)
Year of Manufacture 2021 with 4 frames (4)
Model JAT.810 Eurotech
230cm weaving width
4 Color weft selection
With Dual pick insertion capability
Lycra capability
E- Shedding Technology
Leno selvedges
Electronic Let off 1000mm beam diameter
Electronic Take up
On Loom cloth roller take up
With:
1.5 Warp beams
1.5 Cloth rollers
4 Weft Feeders
8 Harness frames
10,000 heddles
10,000 droppers

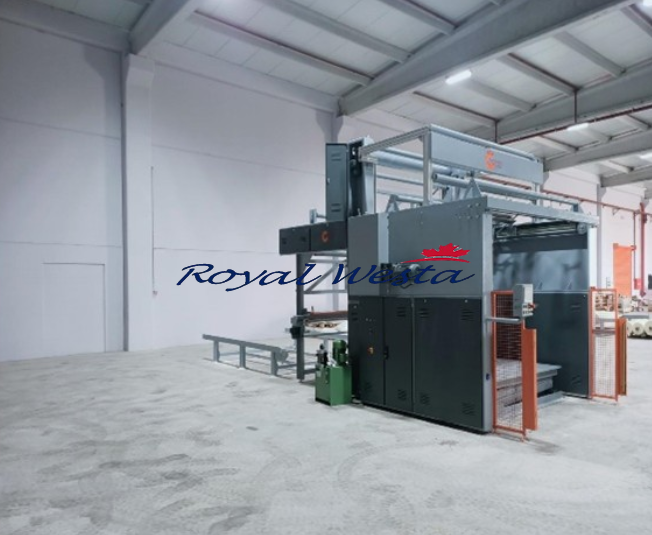

Folding and Plaiting:
1x GUVEN CELIK High Pile Plaiting Machine
Model KY-PL 150
Year of Manufacture 2022

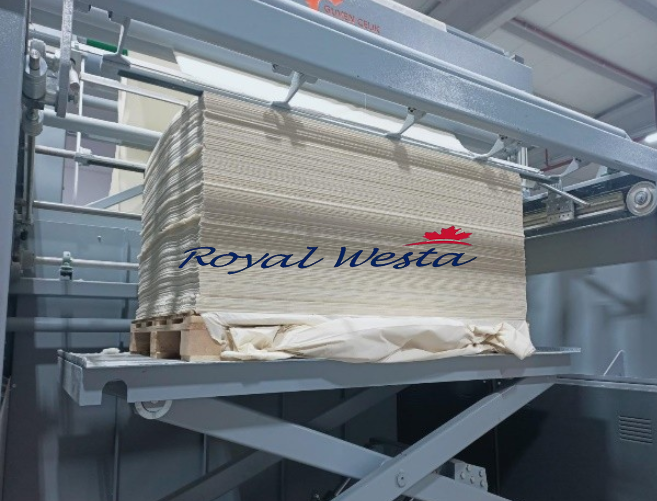

Palletizer
Working width 2400mm
Measuring One meter plaits
Single or Double layering
Scissor platform
Maximum full pallet Height 2400mm
50 Meters per min controlled speed operation

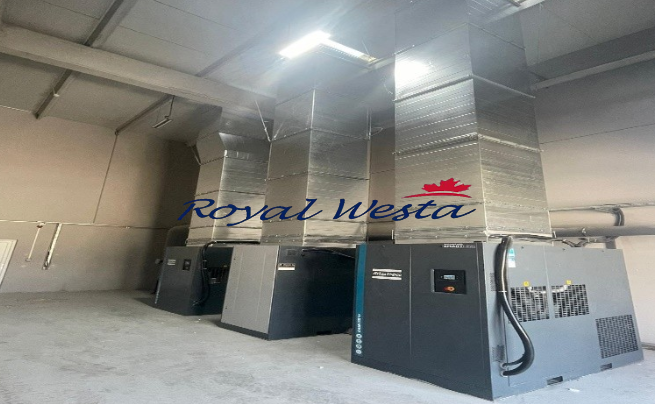

Air Compressors:
3x ATLAS COPCO Air compressors
Model GA90 VSD
Year of Manufacture 2022
90 KW with dry air
Equipped with Smart Link

Note:
Accessories included
Leno – weft feeders – harness frames – e shedding dobby – warp beam

Electrical specifications: voltage and frequency (Hz). 50 Hz but does not matter as the looms are all inverter controlled and can work in any country
