1 x 5.0m Dilo Needleloom Nonwoven Line with Dilour Raising (for Automotive)
Year: 1999
Brief technical information:

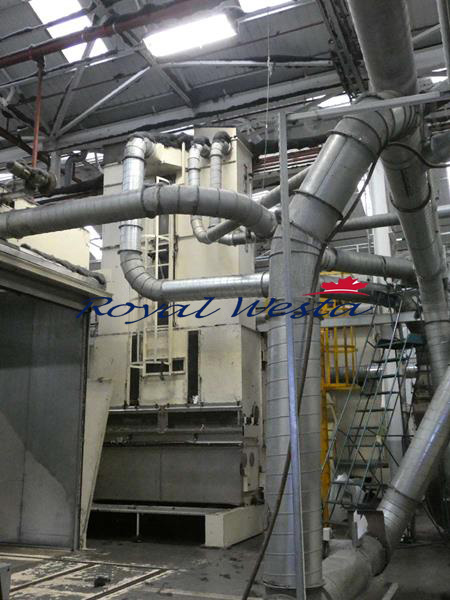

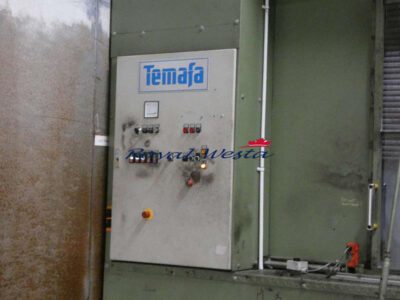

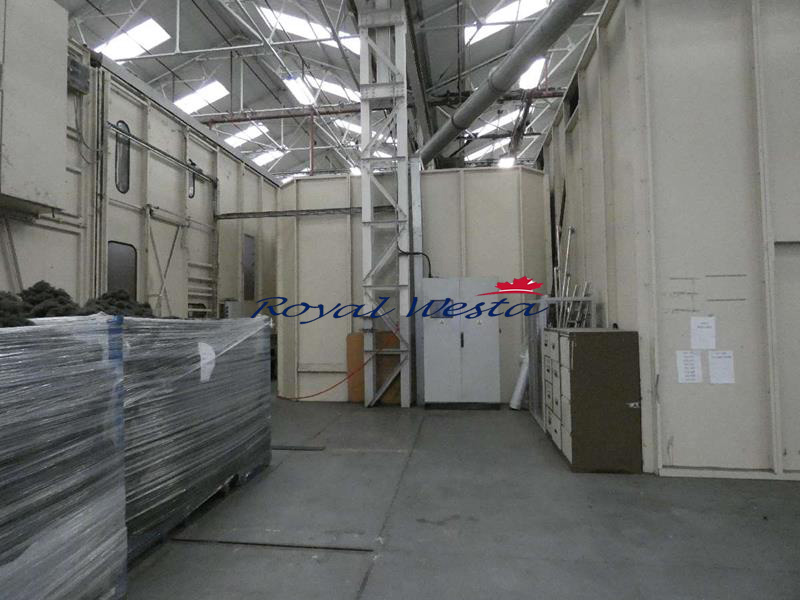

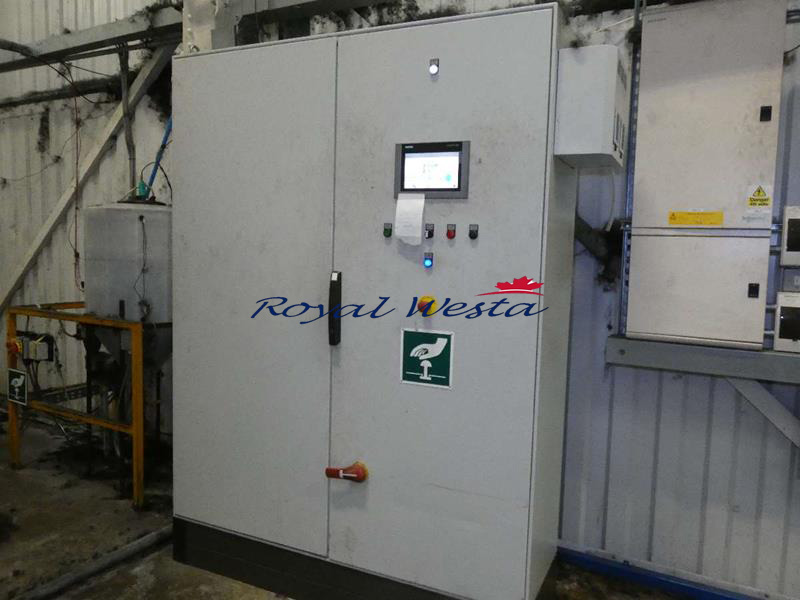

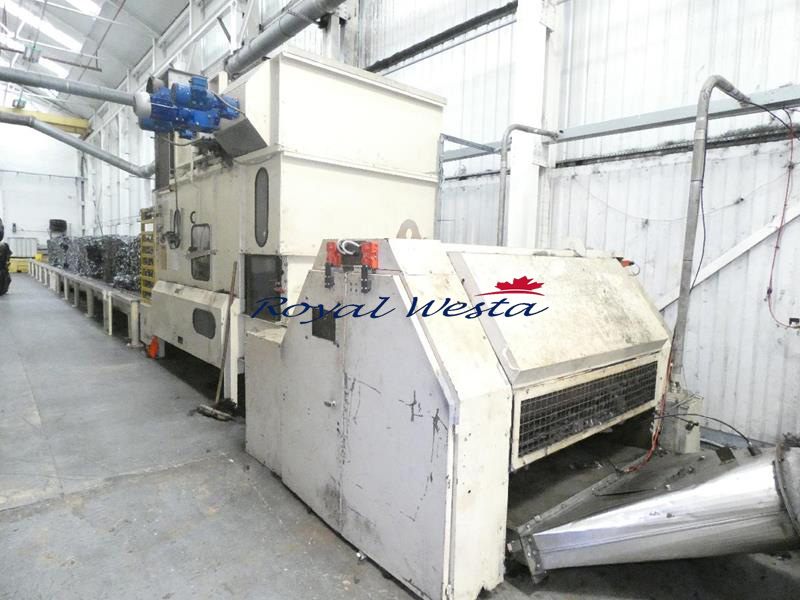

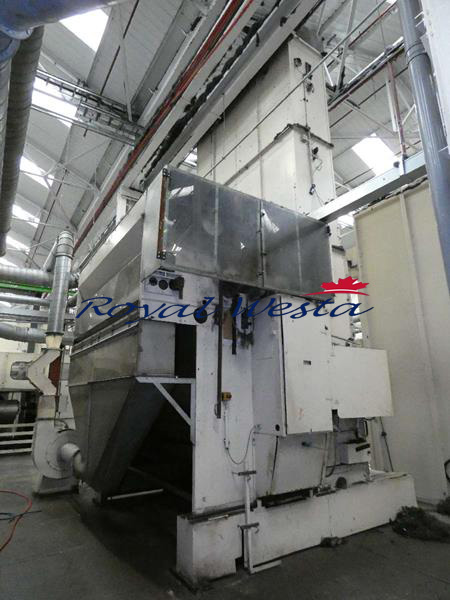

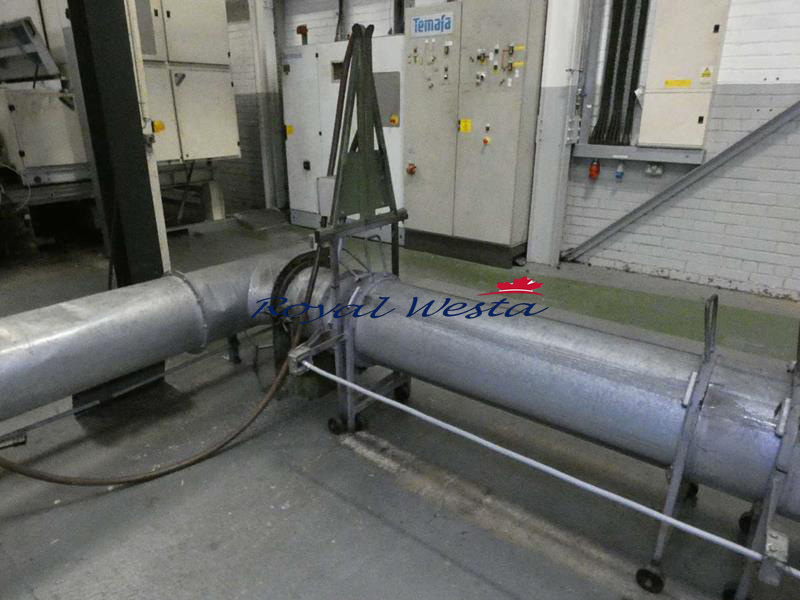

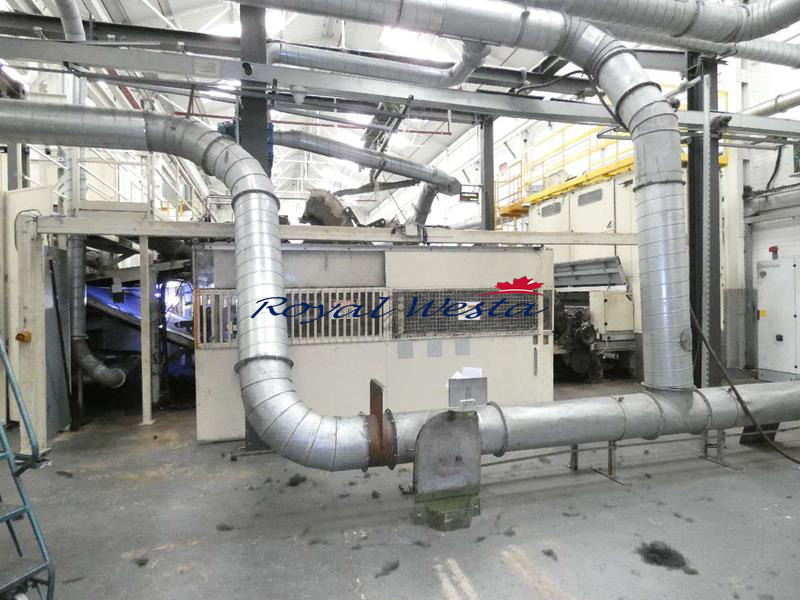

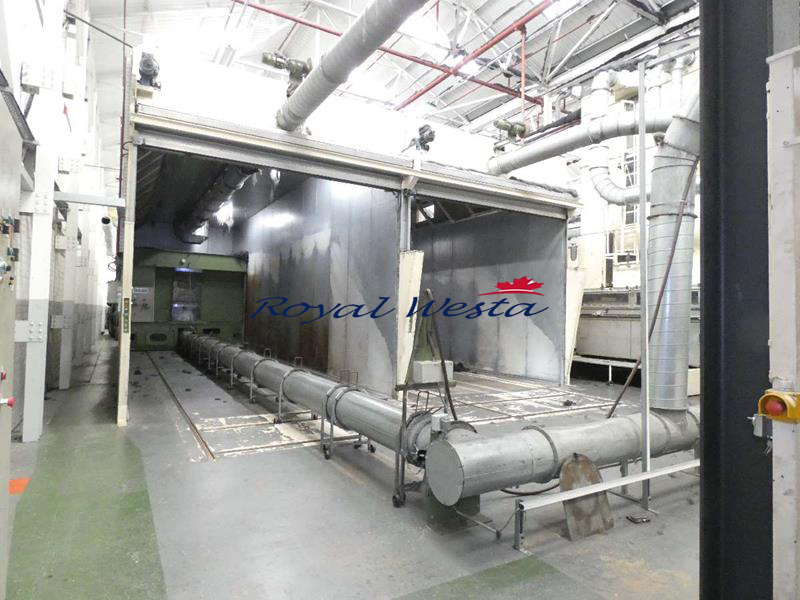

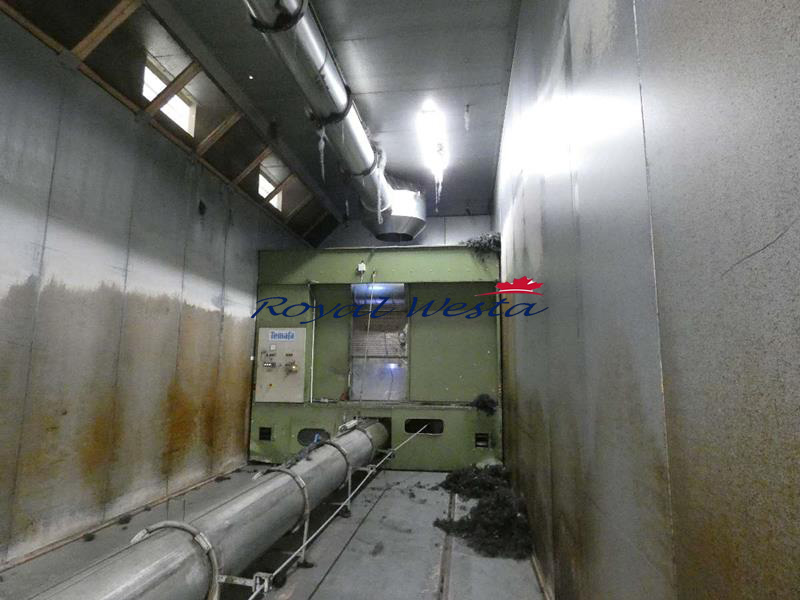

Fibre Blending

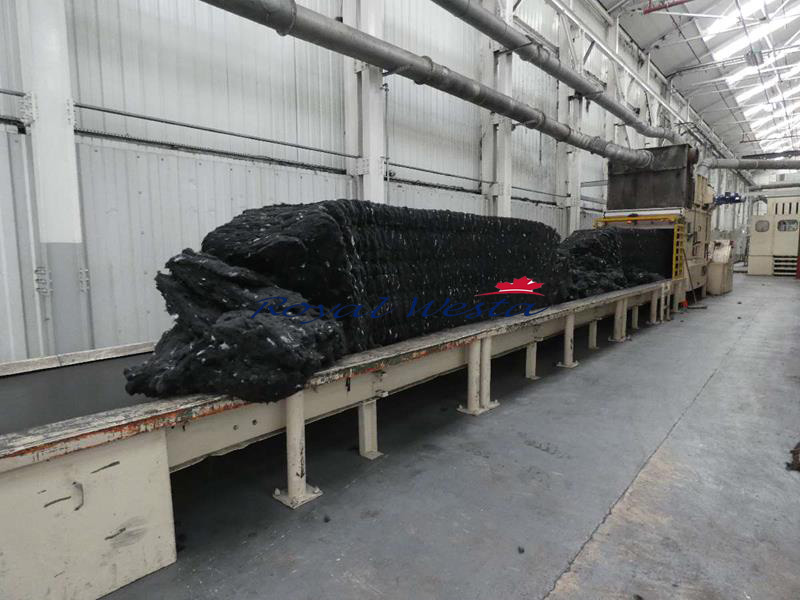

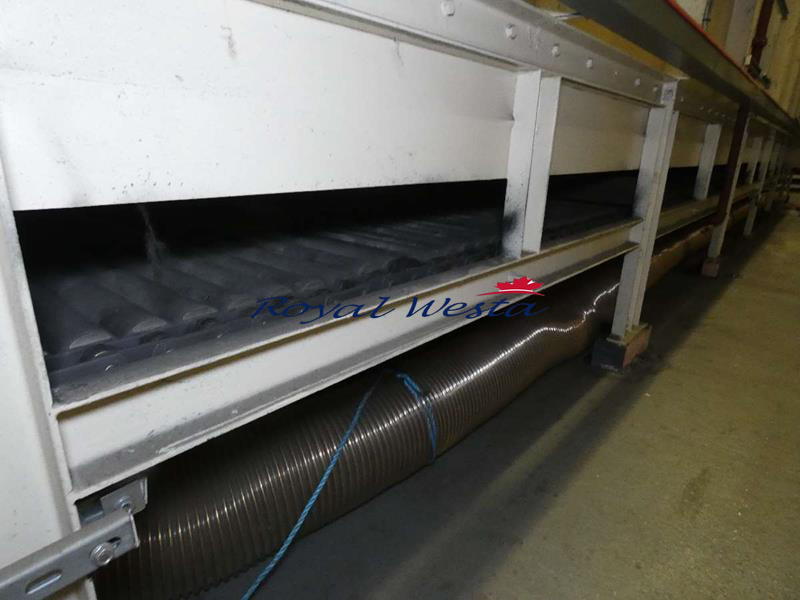

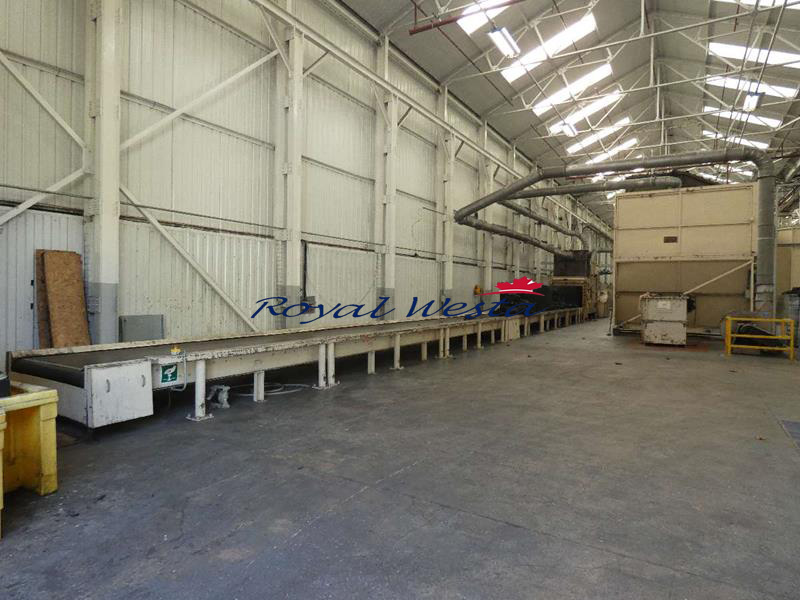

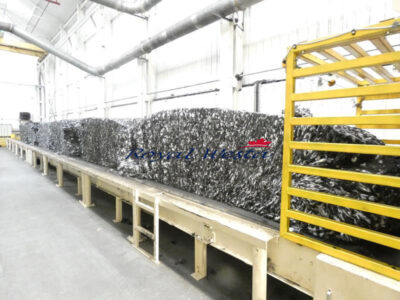

Temafa 25m Conveyor (fits 8 bales end to end)

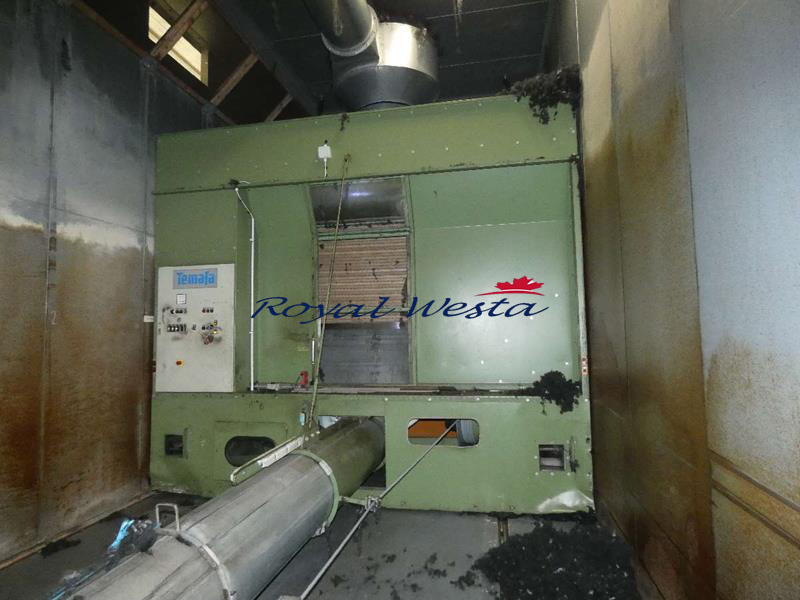

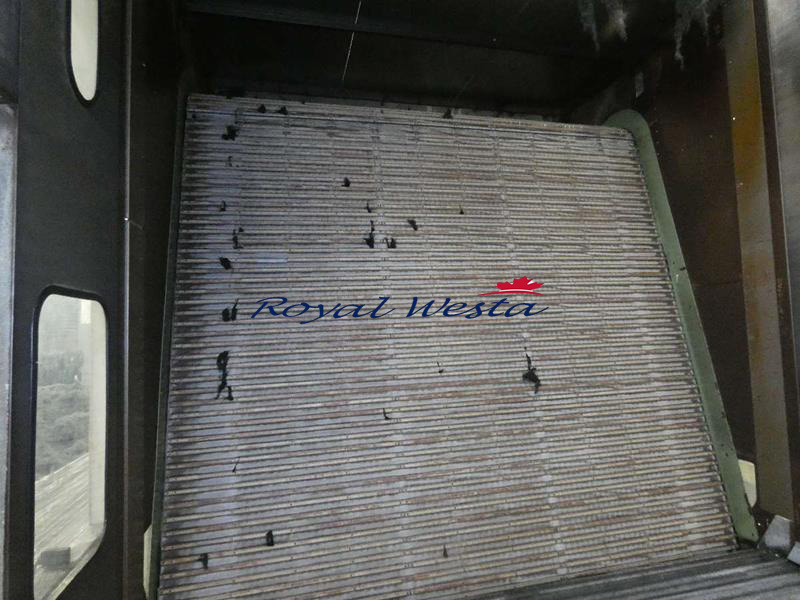

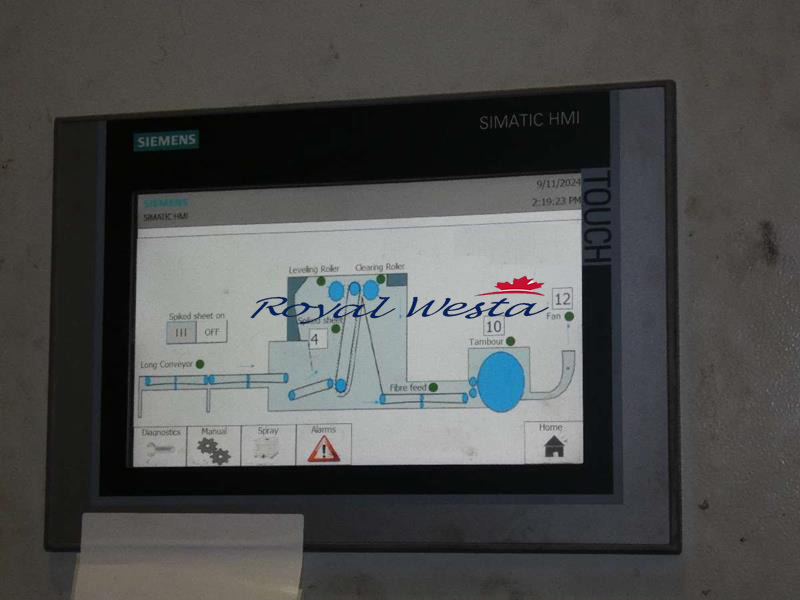

Temafa Single pin sheet blending hopper with Volumetric feed
Temafa Fearnaught Fibre opening, Type RD02
Oiling
Temafa Metal detection
Fan
Feed to either:

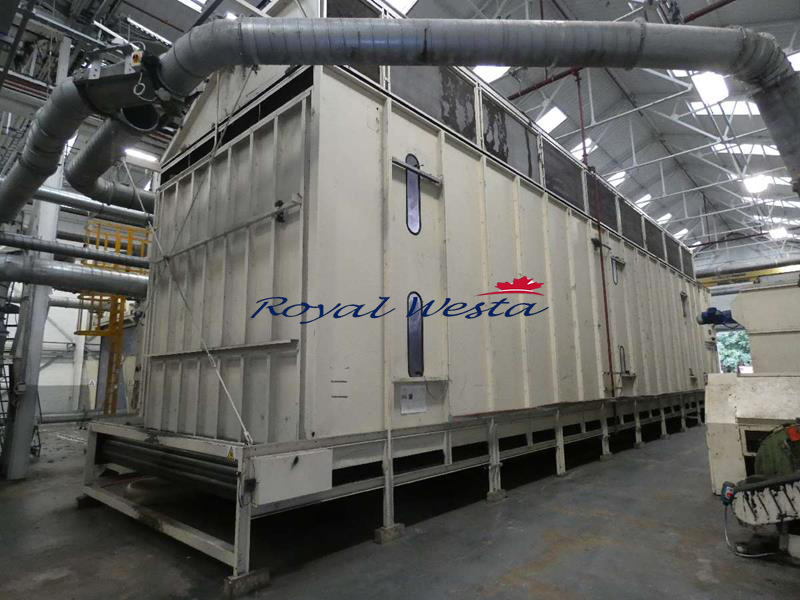

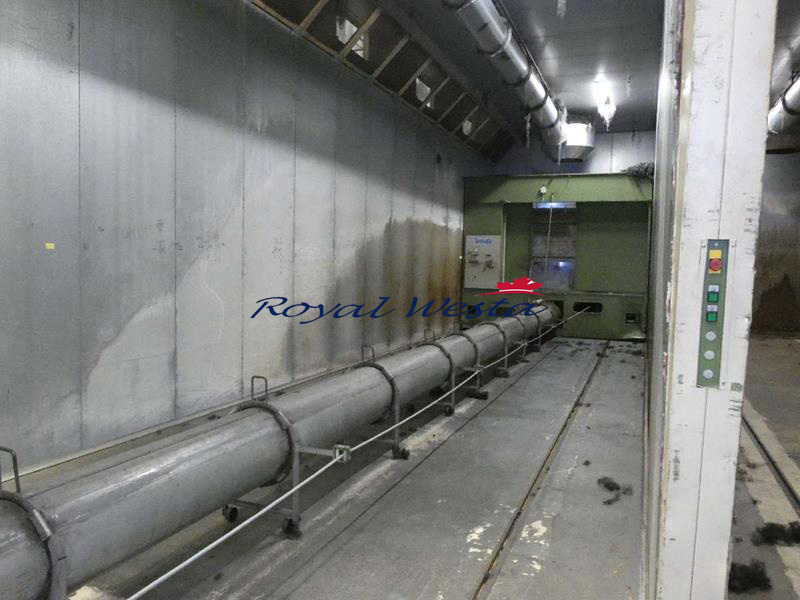

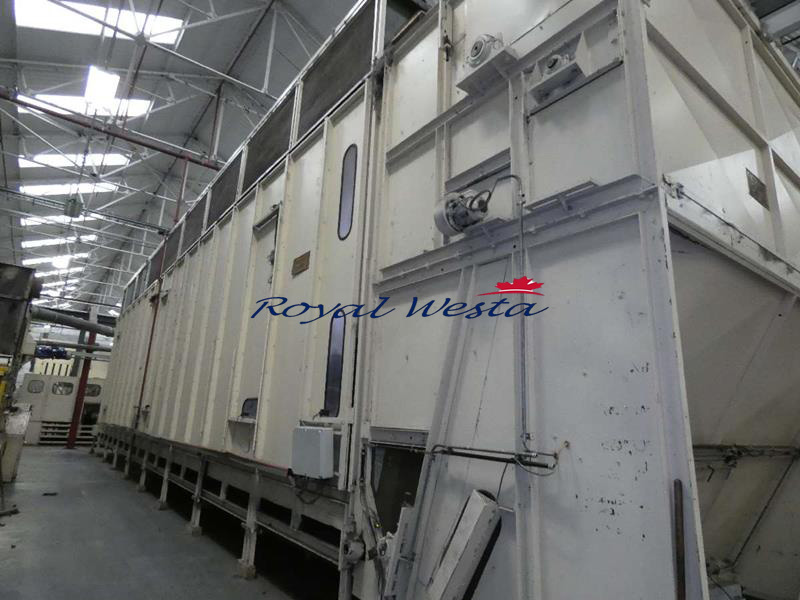

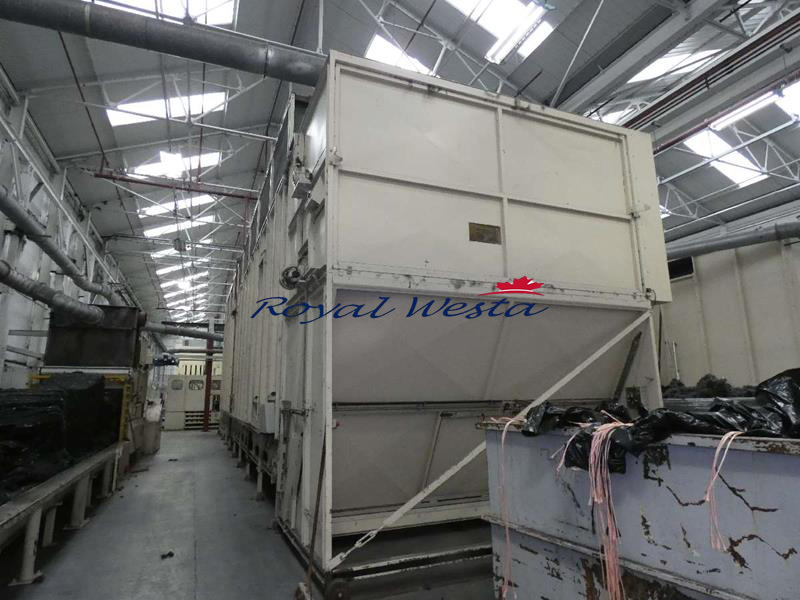

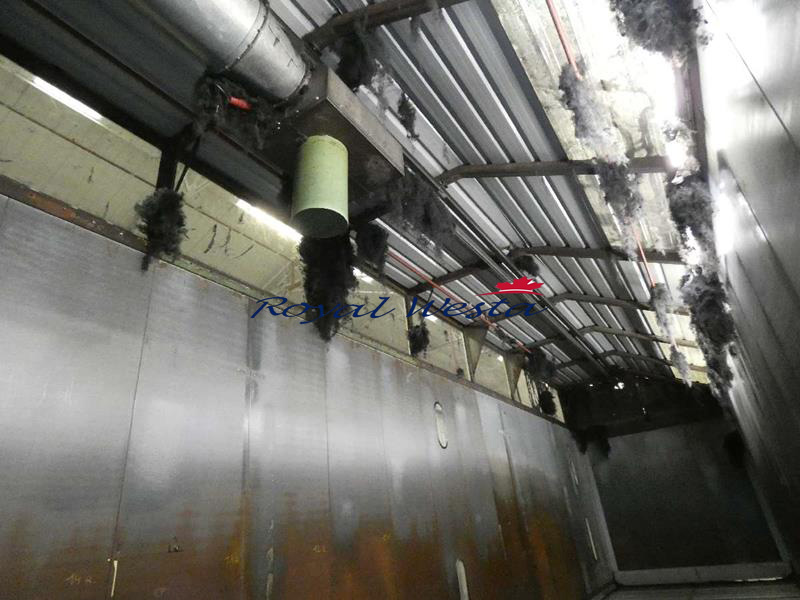

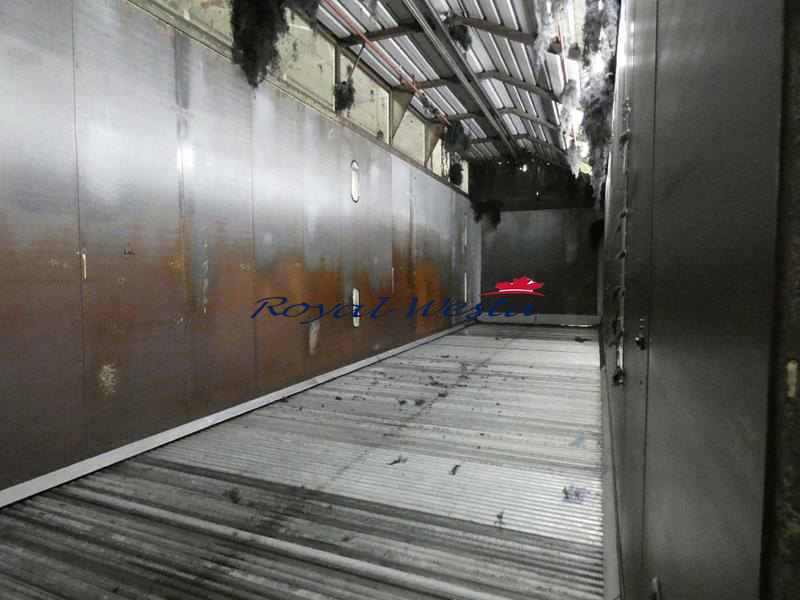

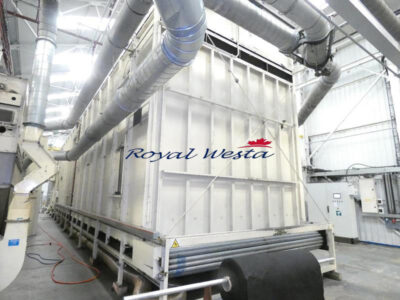

Temafa Mix master blending bin with conveyor floor (approx. 20m x 4m) – Type MM20 / 2
Or
Temafa Small Blending bin (5m x 5m)
Or

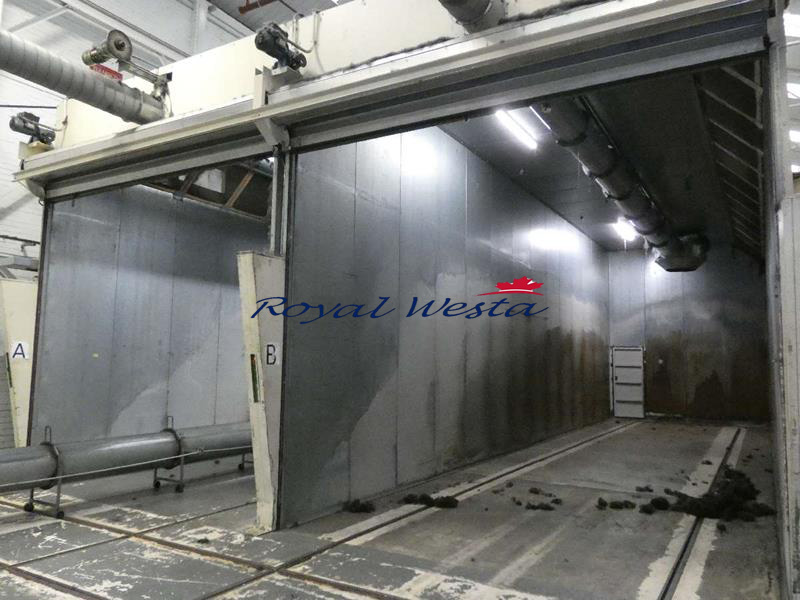

2 x Temafa blending bins each approx. 2500kgs with single bin Temafa emptier

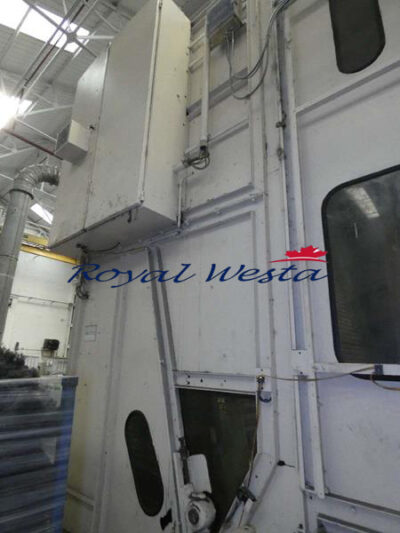

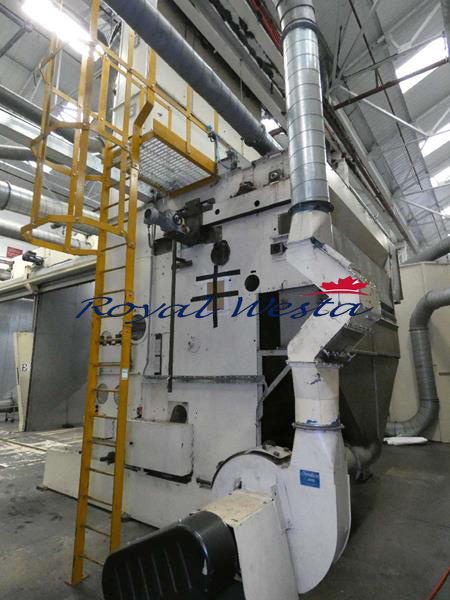

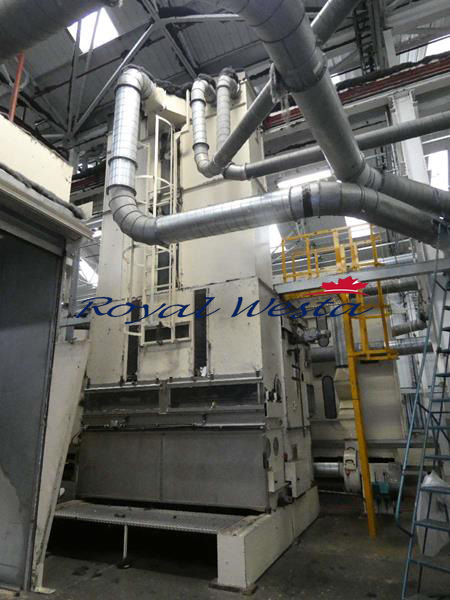

Temafa fabric condenser and feed tower (10m high)

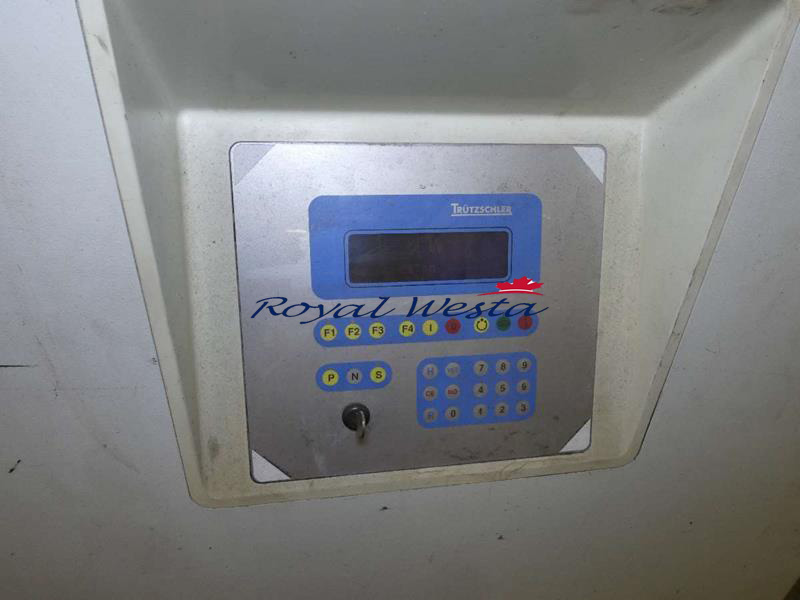

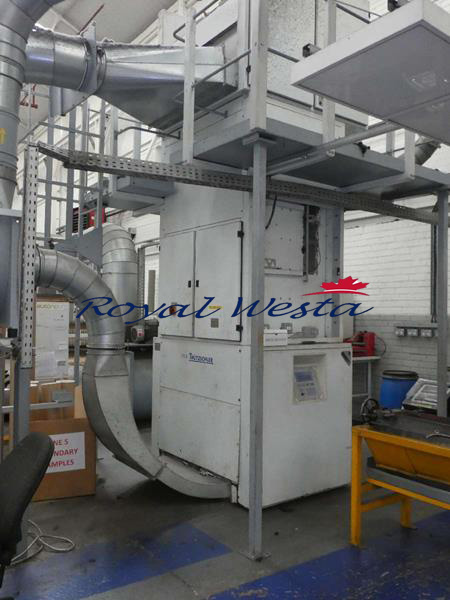

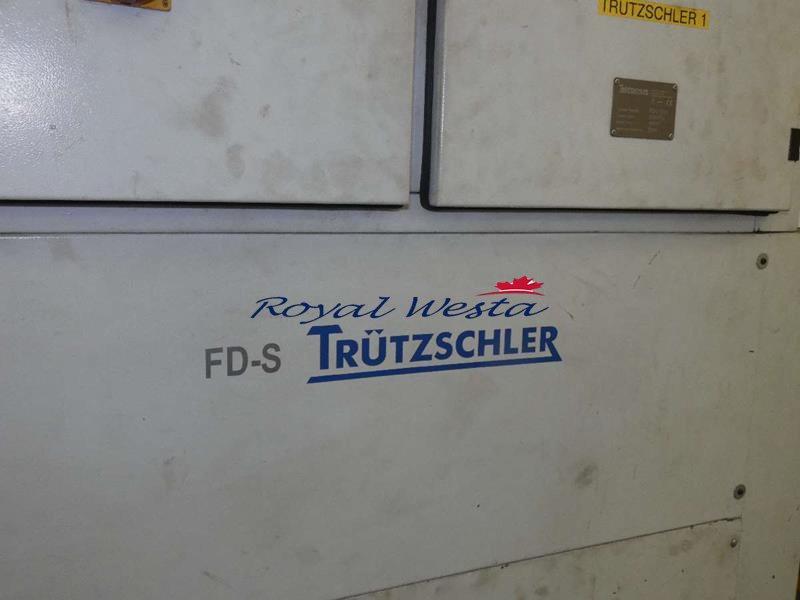

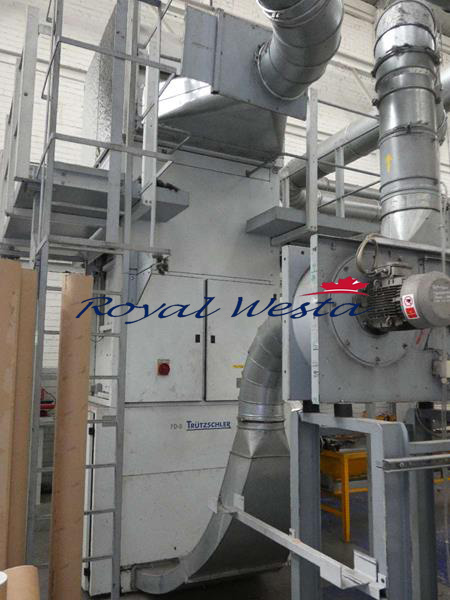

Trutzschler FD-S fine fibre opening (2005)

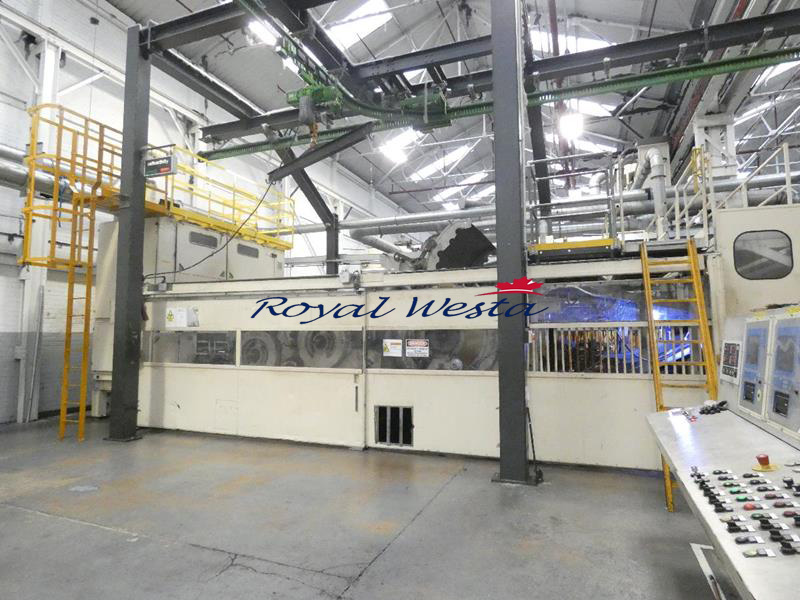

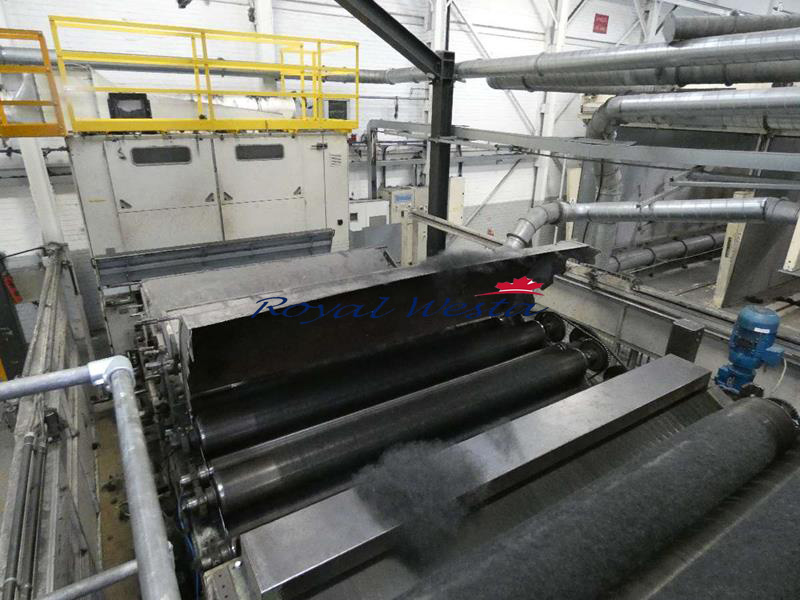

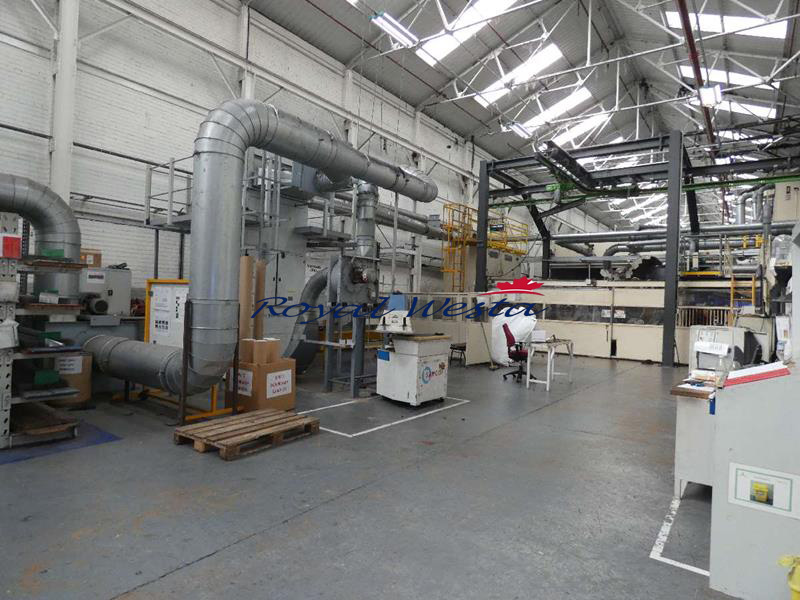

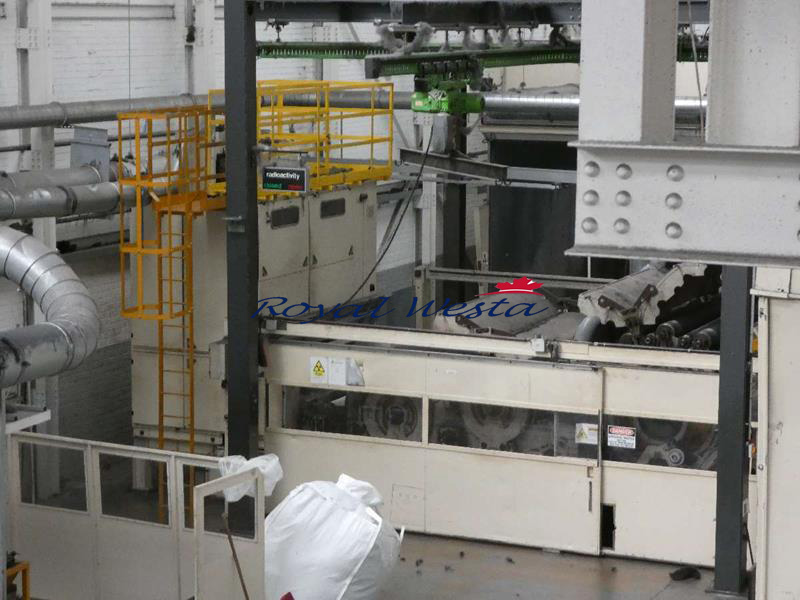

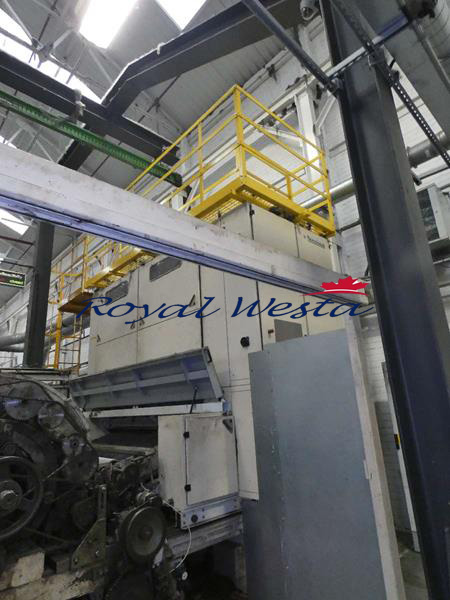

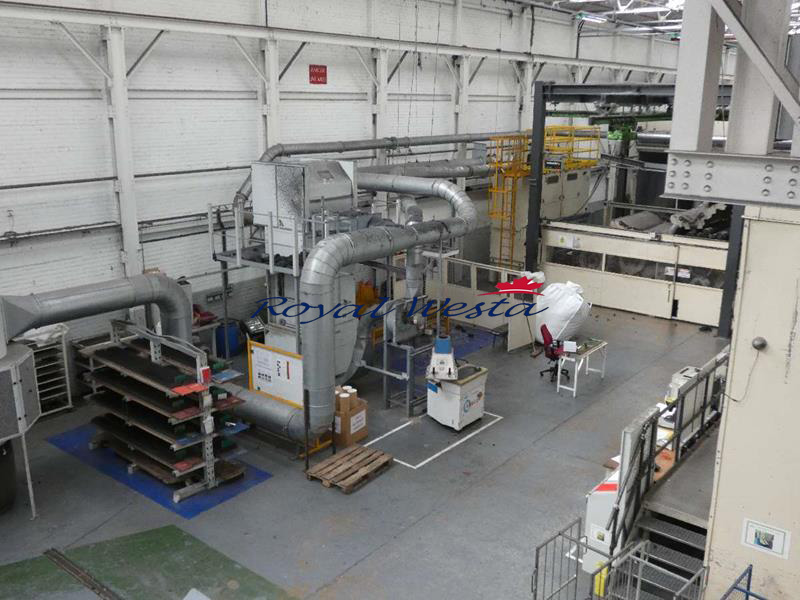

Carding
Trutzschler volumetric card hopper feed

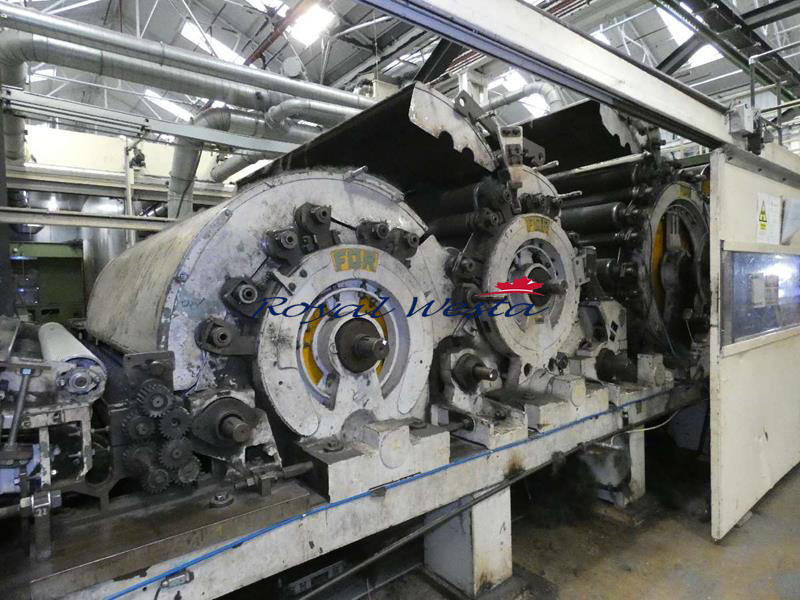

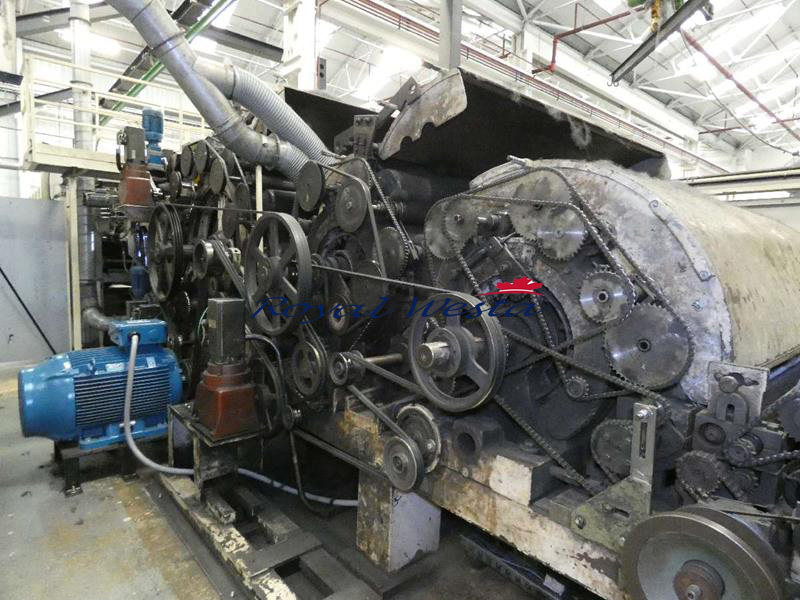

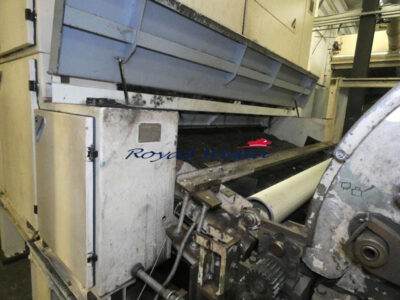

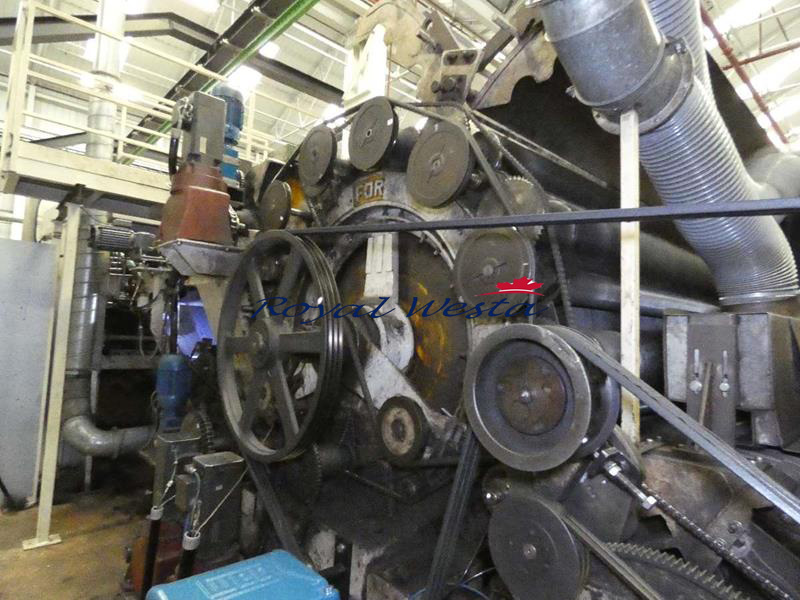

2.5m FOR multi-cylinder nonwoven card with double doffer (Serial No. 83001)
Production rate up to 500kgs per hour

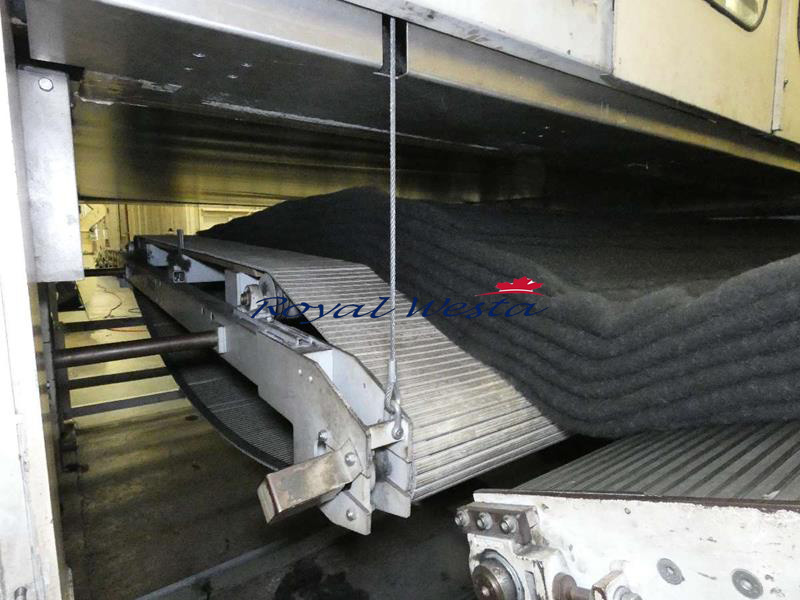

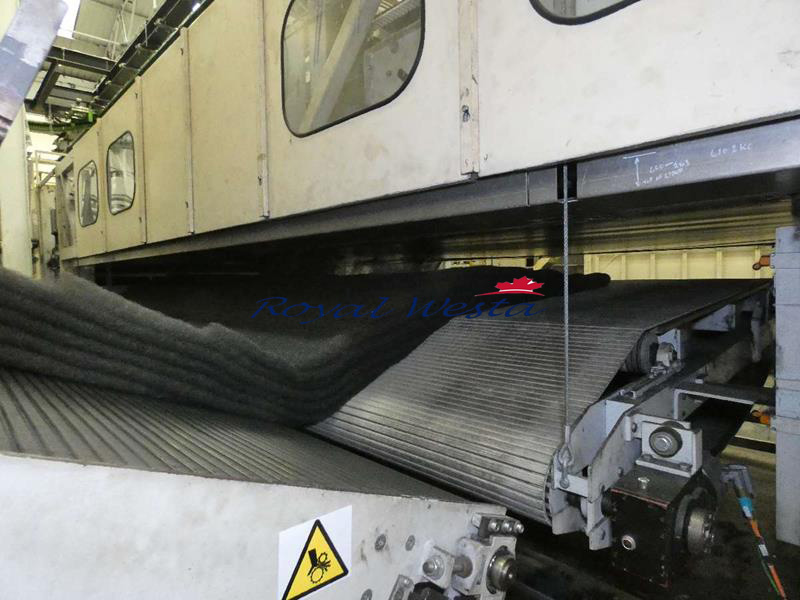

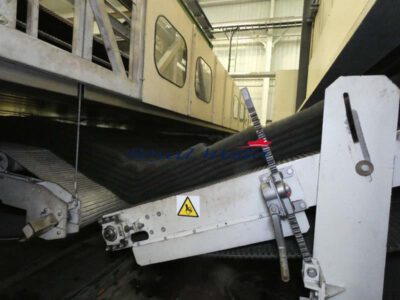

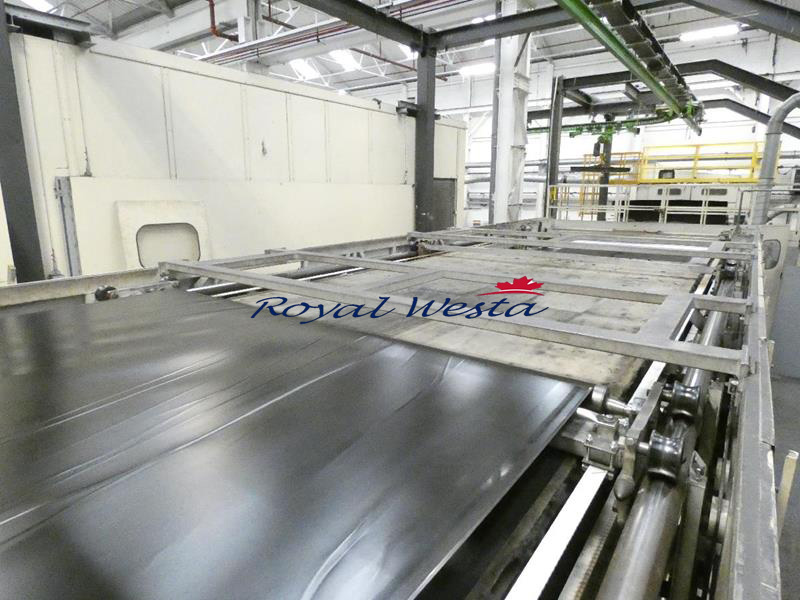

Cross lapper

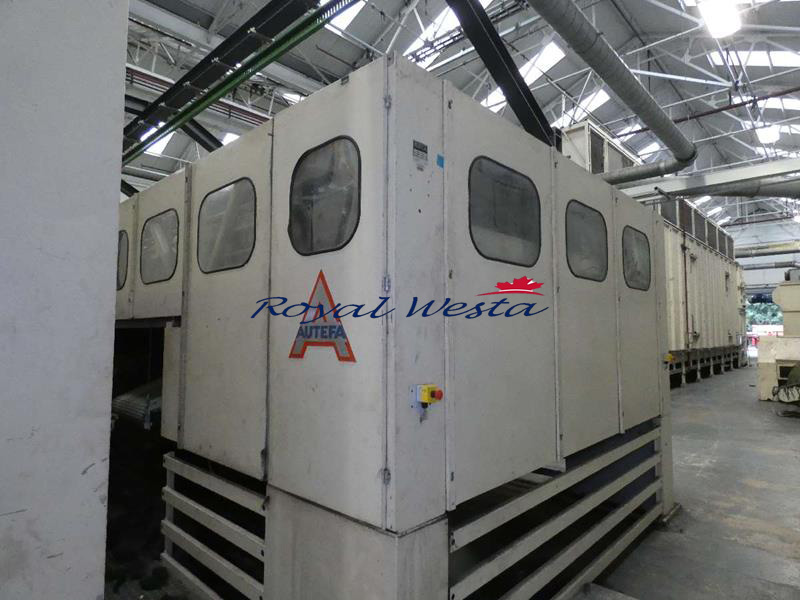

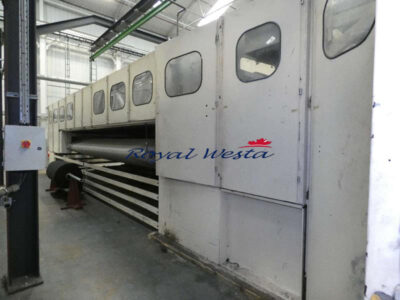

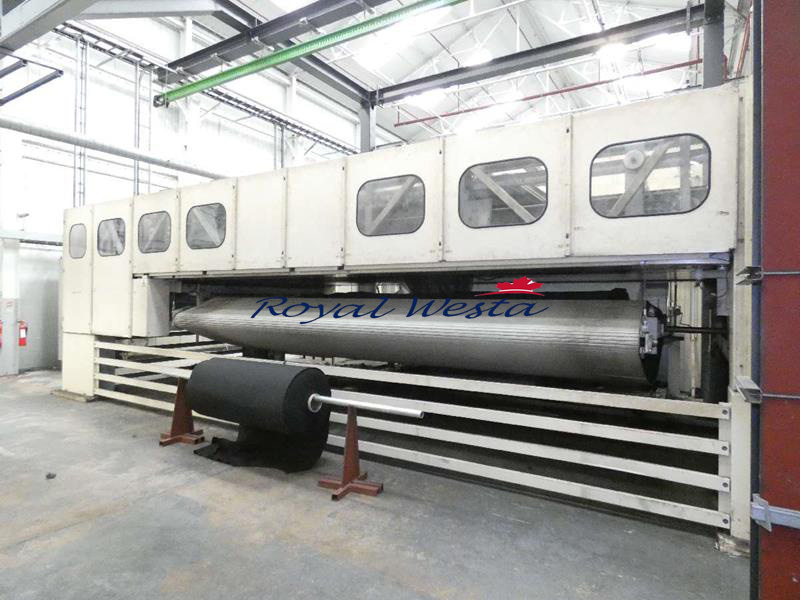

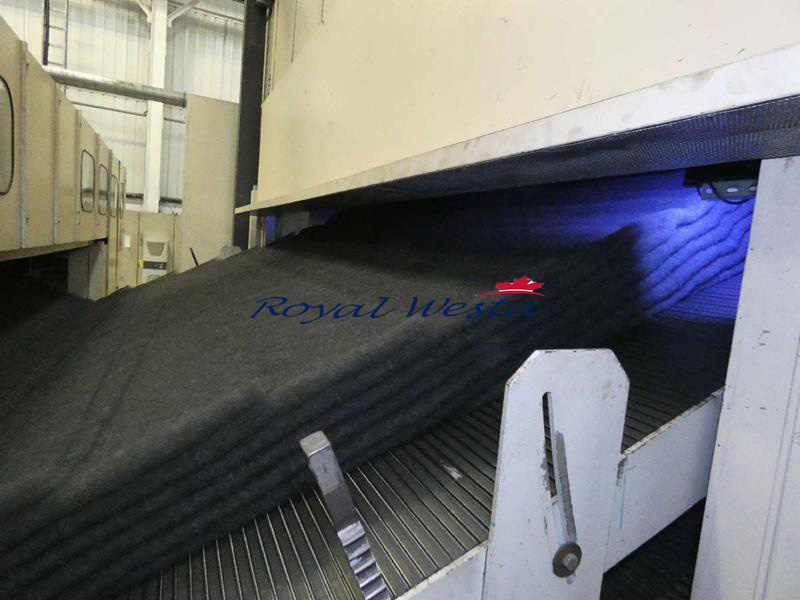

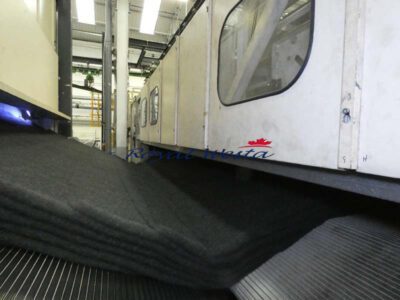

Autefa Cross Lapper (Type 190 73) with 2.5m inlet and 5.0m max lay width (1999)
Serial No 3026

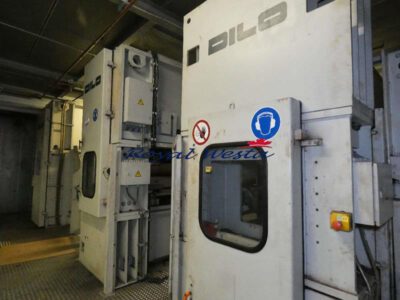

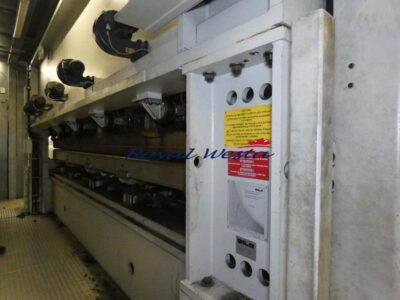

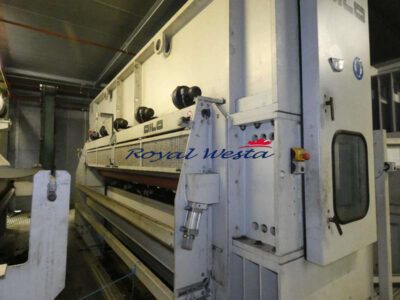

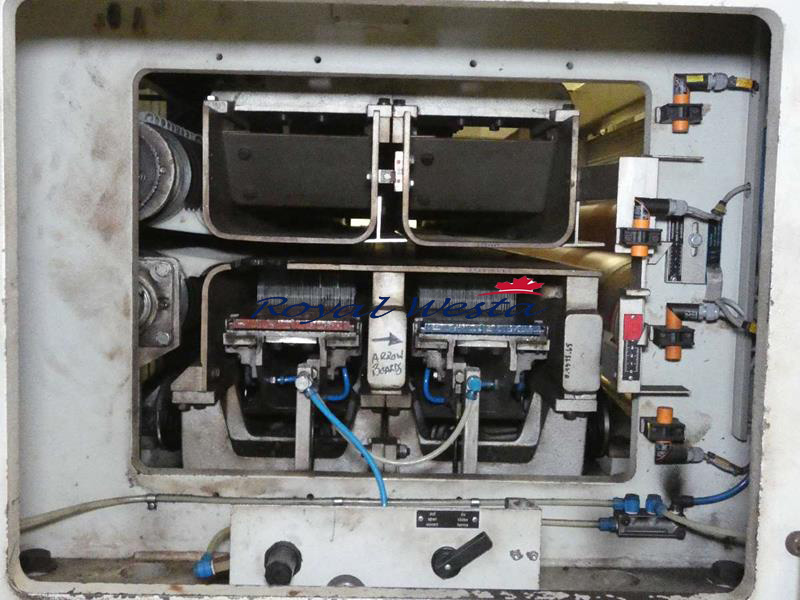

Needlepunch

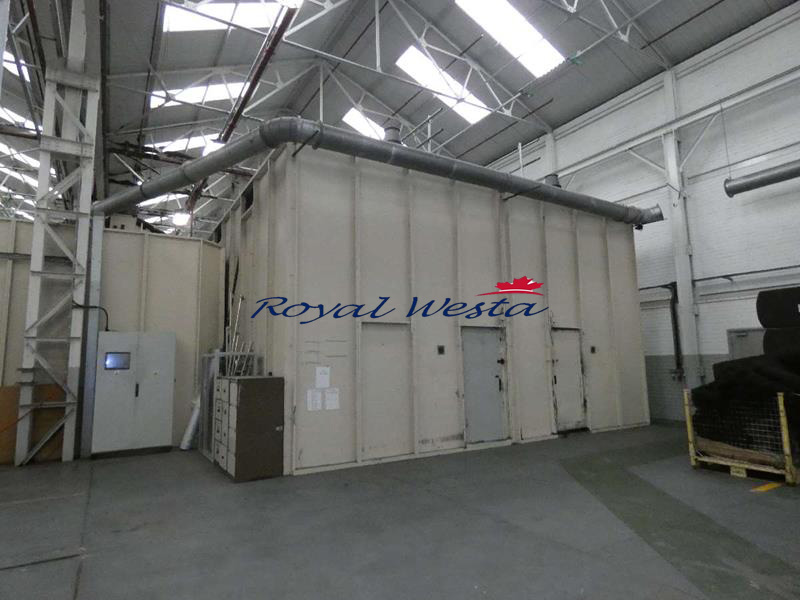

Sound proof cabinet

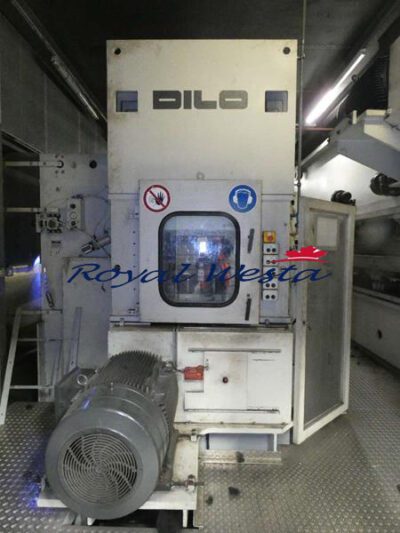

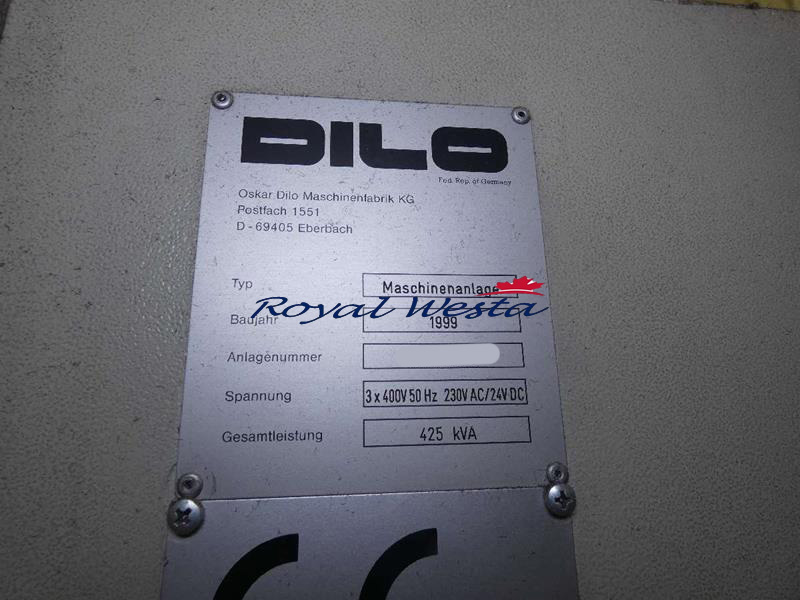

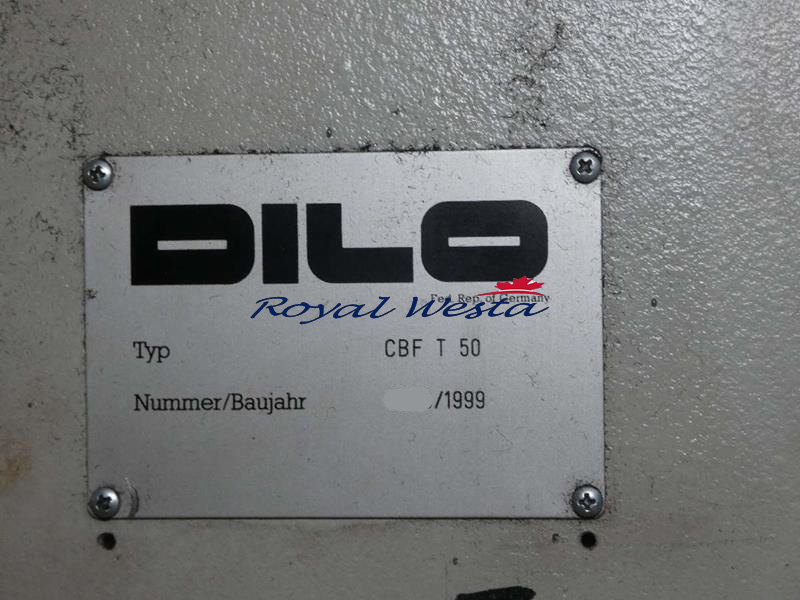

5.0m Dilo pre needle (Type CBF T 50, 1999)
(Input web compression sheets with finger system)
5.0m Dilo Needle loom 1:
Type DI-LOOM UD-Li S 50 (1999)
Stroke: UP
Twin Board
Total Needles 90000
Needle Density: 1800 needles /m
Max Gap: mm
Max needled width: 5.0m
RPM: 1500 (Max)

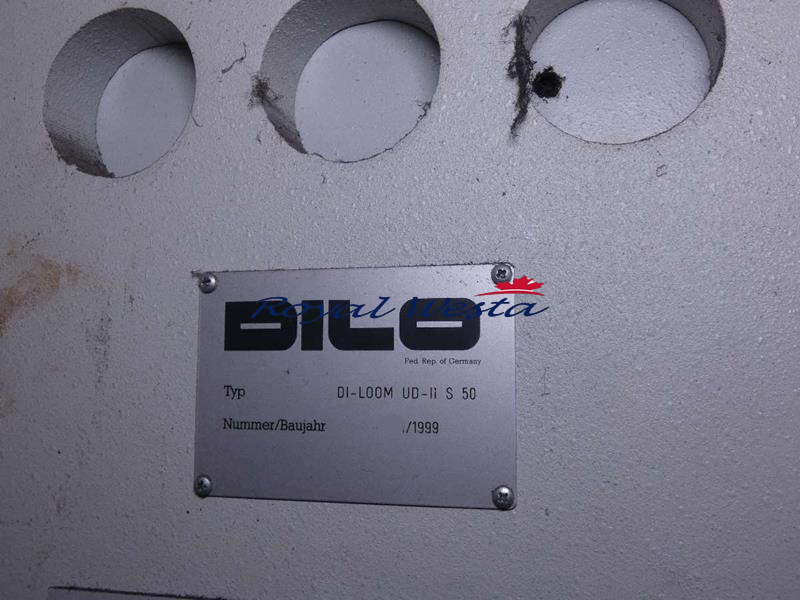

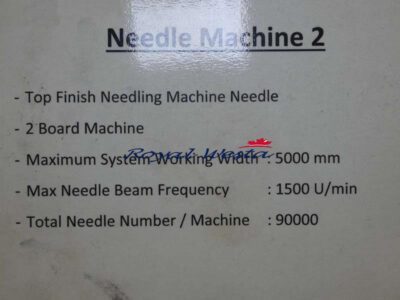

5.0m Dilo Needle loom 2:
Type DI-LOOM UD-II i S 50 (1999)
Stroke: DOWN
Twin Board
Total Needles 90000
Needle Density: 1800 needles /m
Max Gap: mm
Max needled width: 5.0m
RPM: 1500 (Max)
5.0m Dilo Needle loom 3 (Dilour):

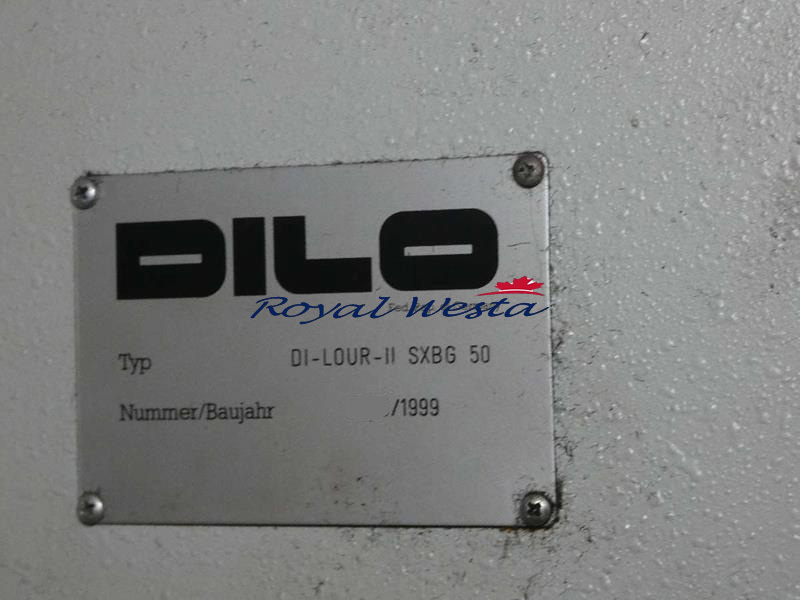

Type DI-LOUR-II SXBG 50 (1999)
Stroke: DOWN
Twin Board
Total Needles 160000
Needle Density: 3200 needles /m
Fork needles
Brush conveyor
Max Gap: mm
Max needled width: 5.0m
RPM: 1900 (Max)

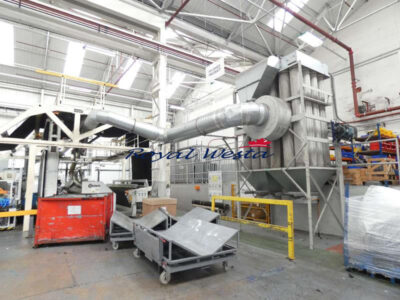

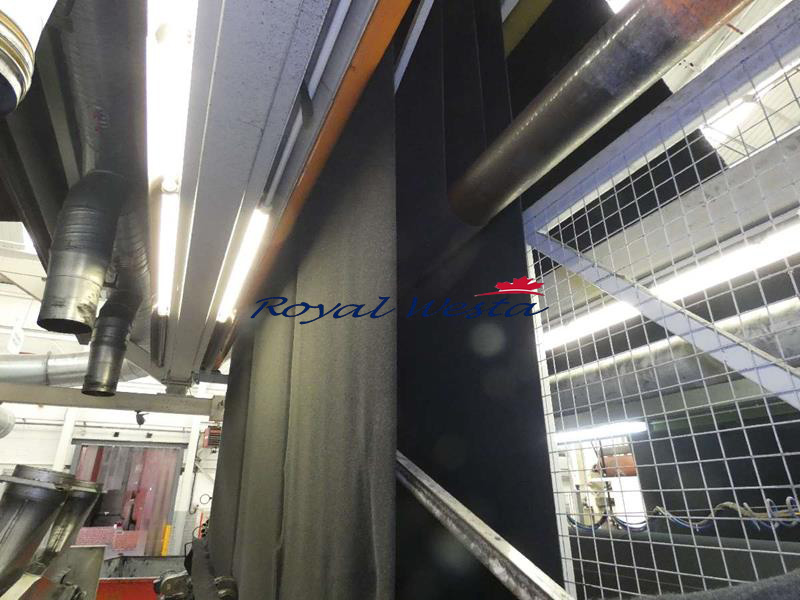

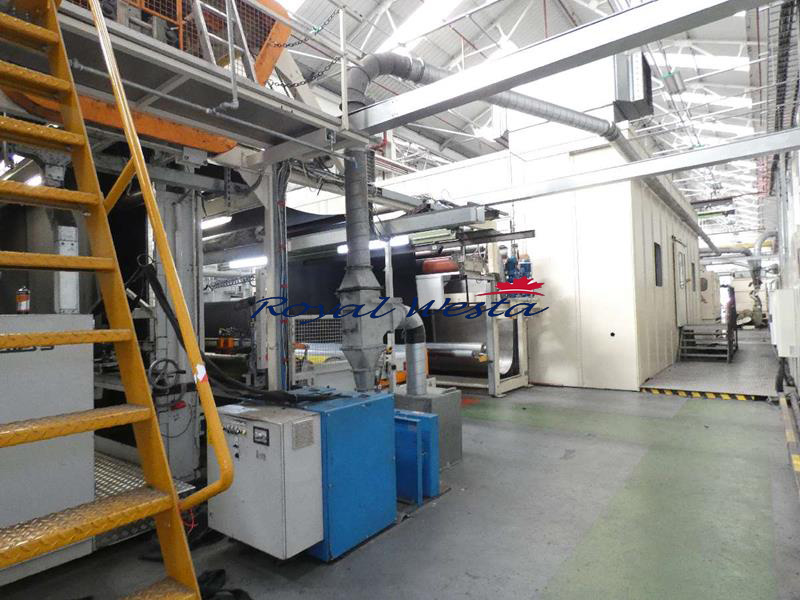

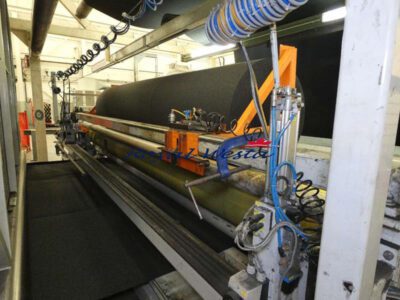

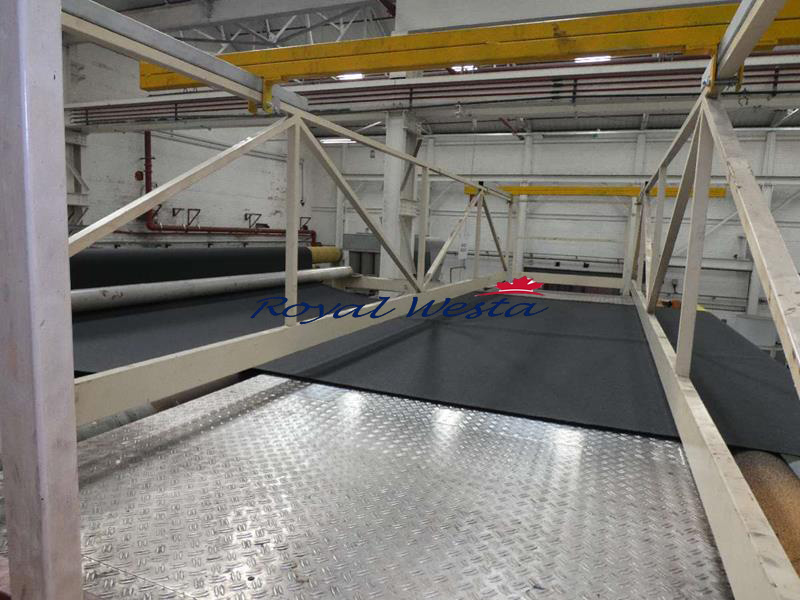

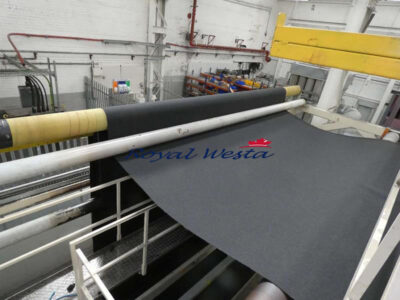

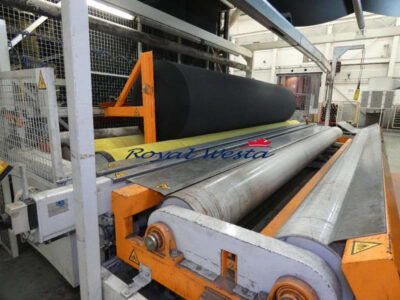

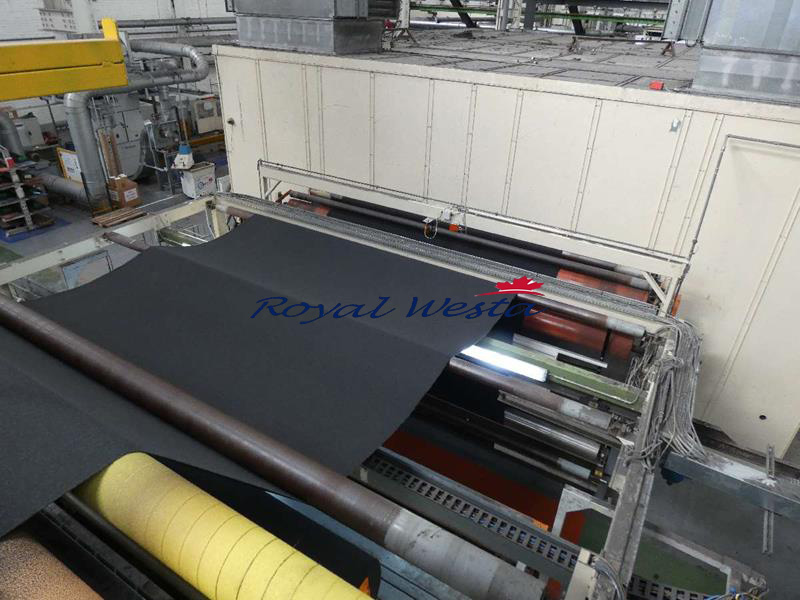

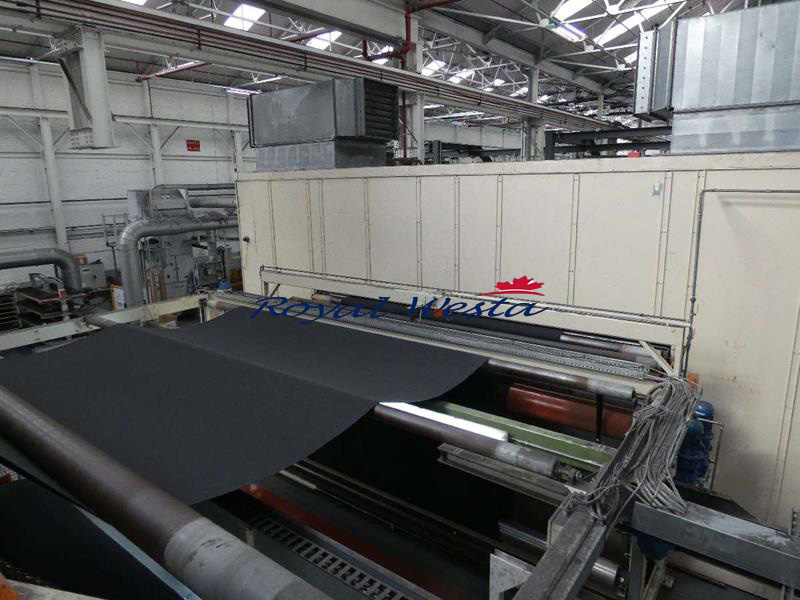

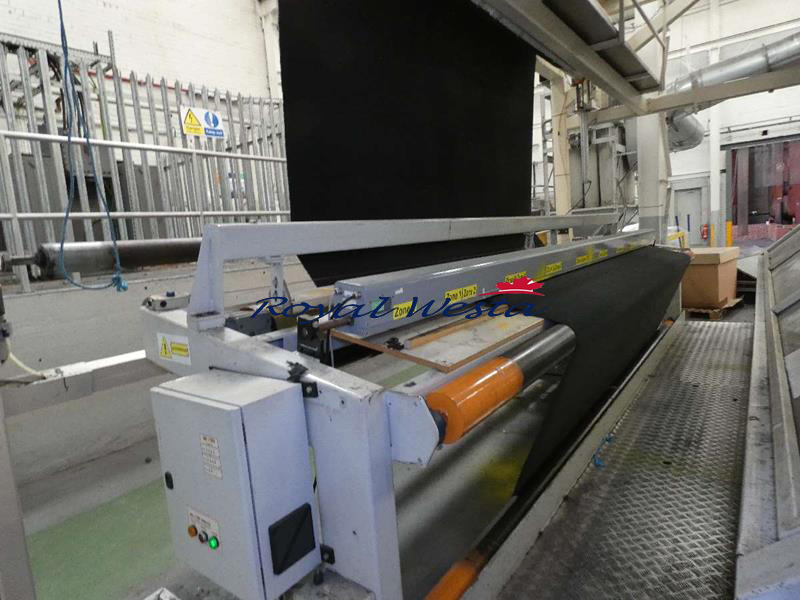

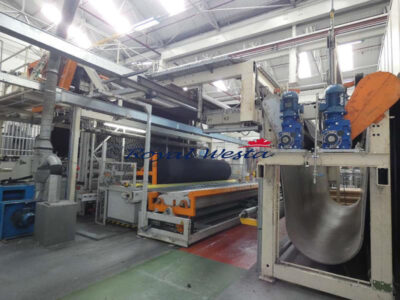

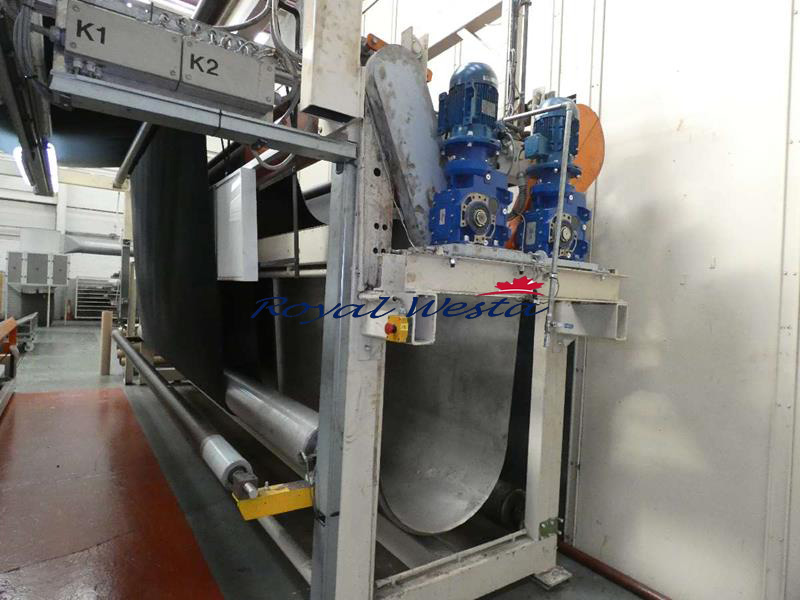

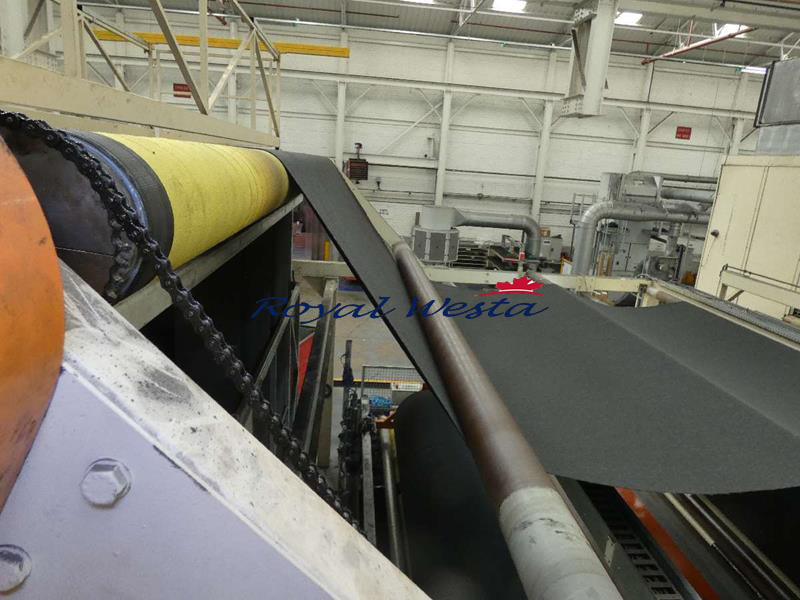

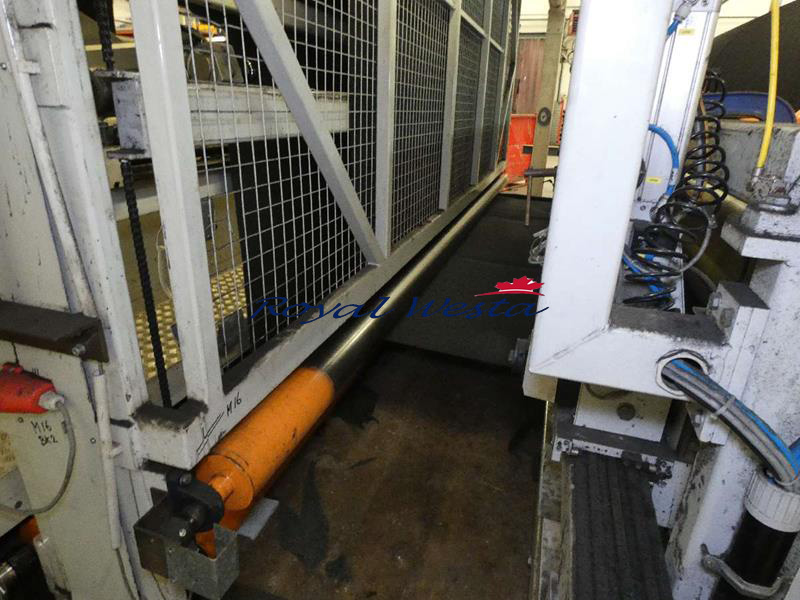

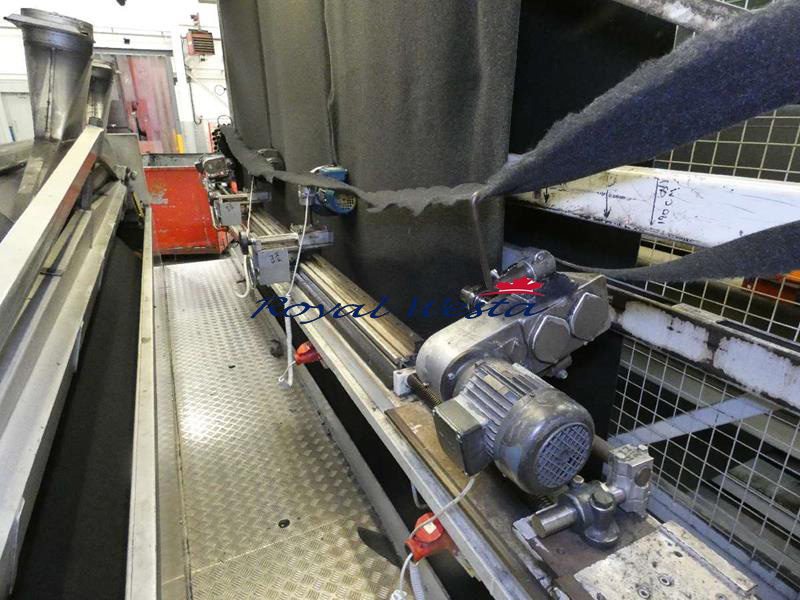

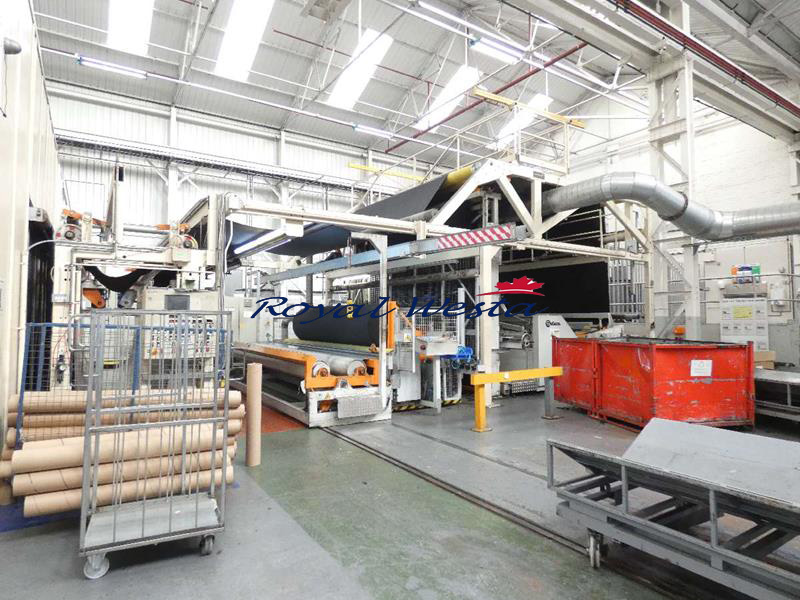

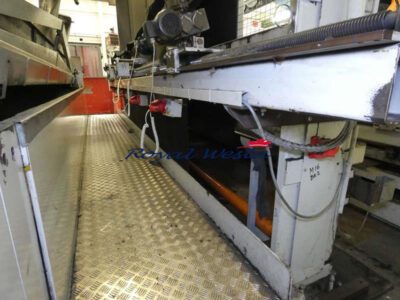

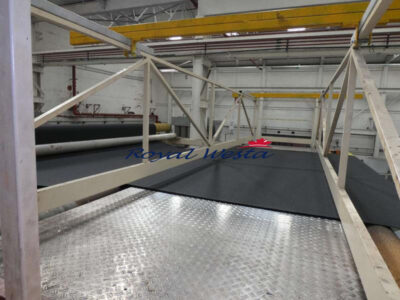

Finishing

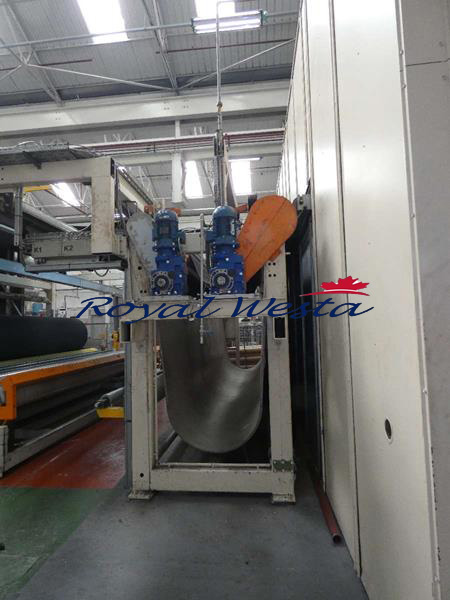

Menzel J Box

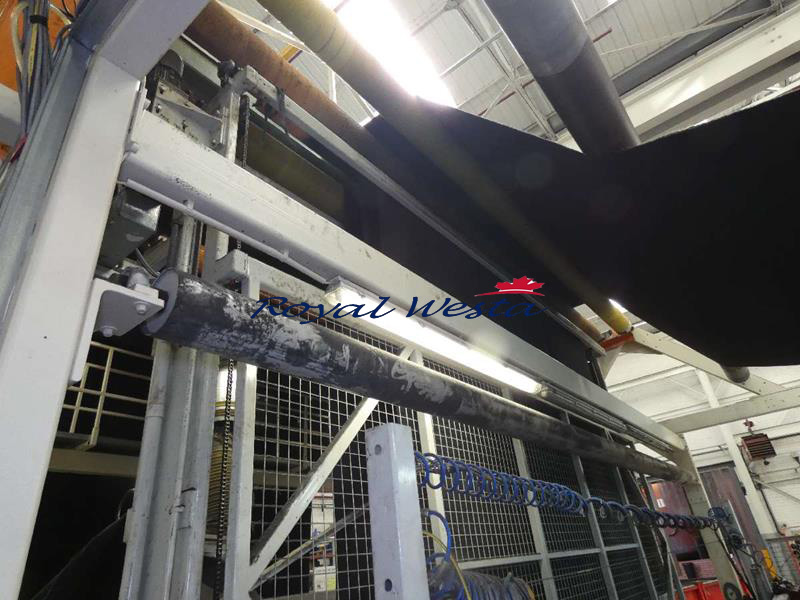

Menzel Overhead gantry
Menzel 5m metal detection

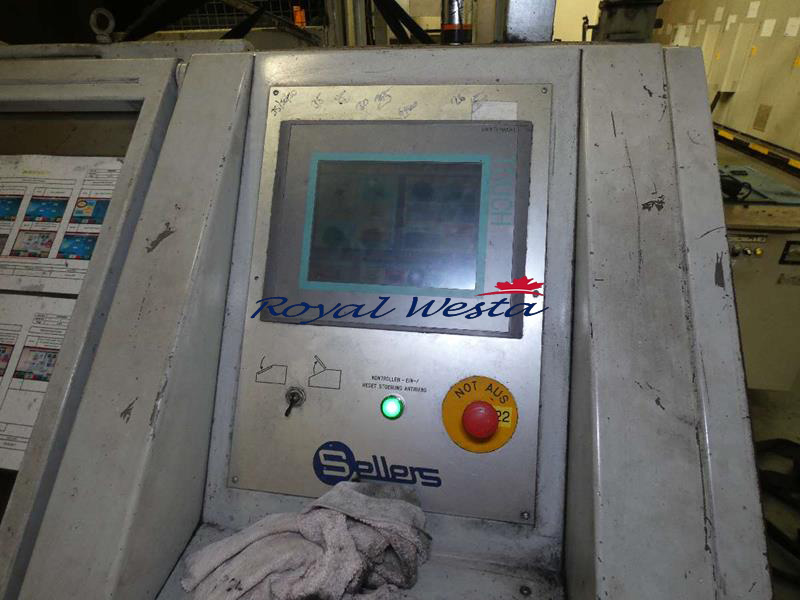

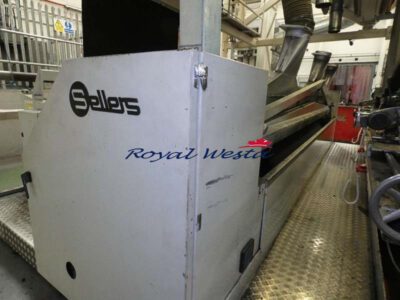

Sellers 5m cropping/shearing + 12 bag fibre/lint collection (2008) (not been used for several years)
4 head edge and centre fabric slitting

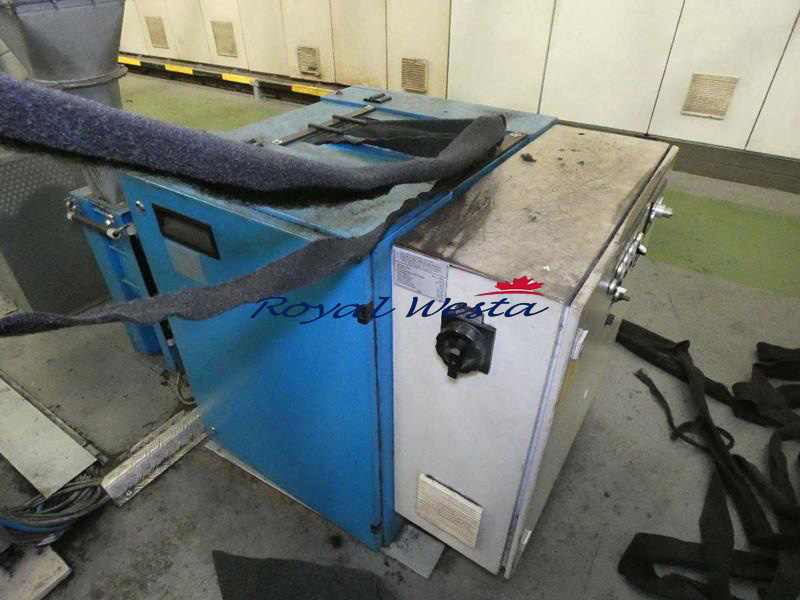

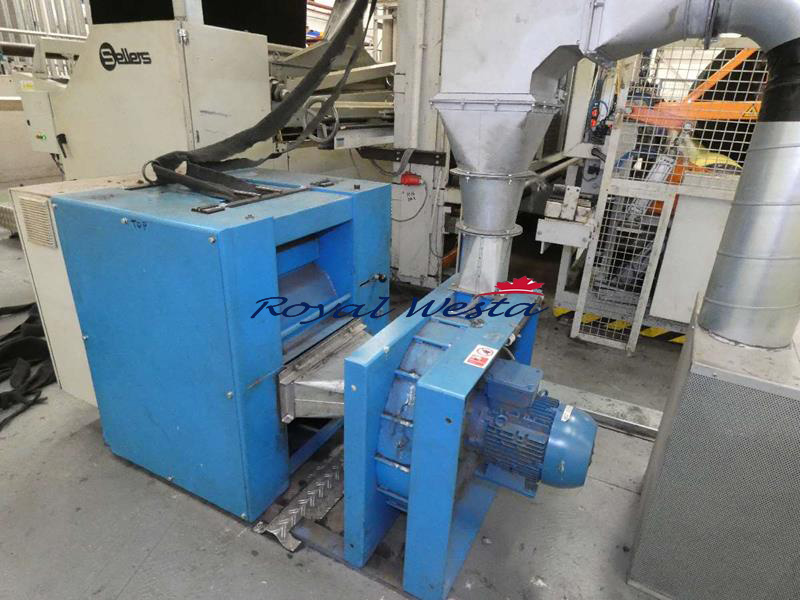

Edge trim - Hepp-Schwamborn (Germany) – Edge shredding with fan
ETF cross cutting

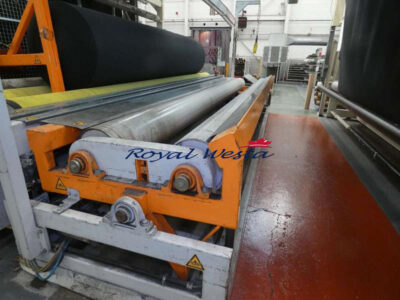

ETF batching roll wind-up (2006)
Fabric measure
ETF cross cutting
ETF take-off rolls
6 x fabric roll transport trucks

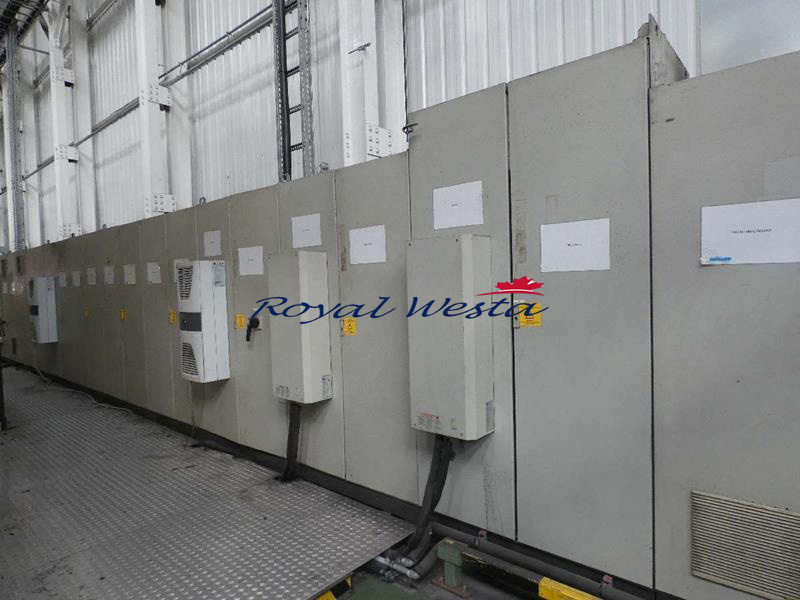

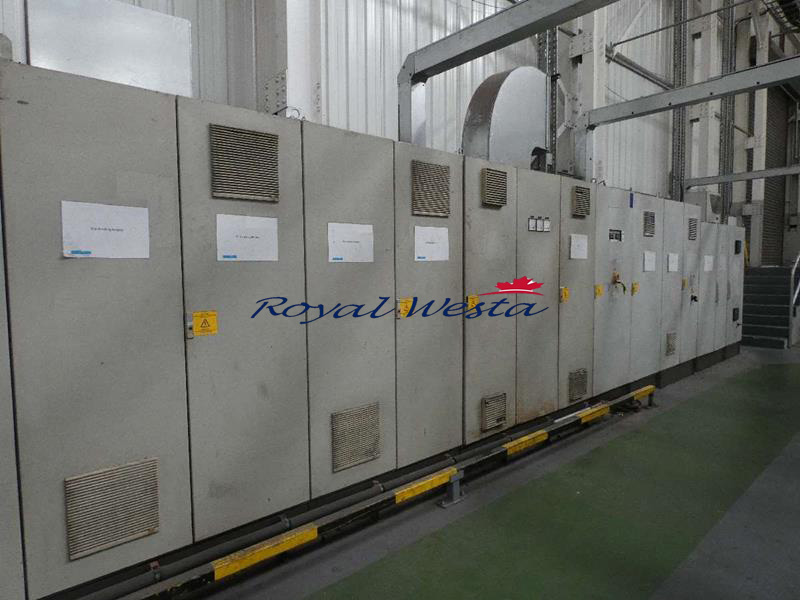

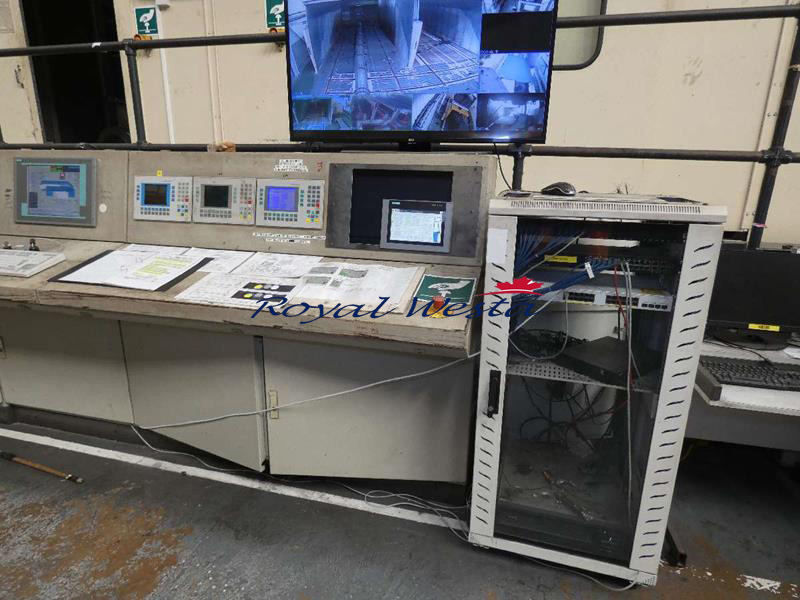

Electrical Supply: 3 Phase 380-440v, 50Hz
Spare parts: All related spare parts and accessories available in the factory (If any).
Manuals: All manuals available in the factory (If any).

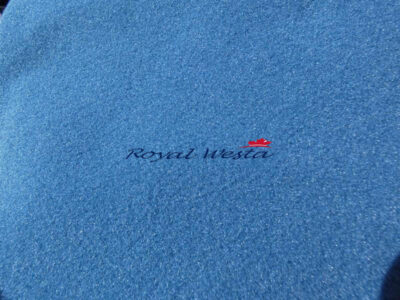

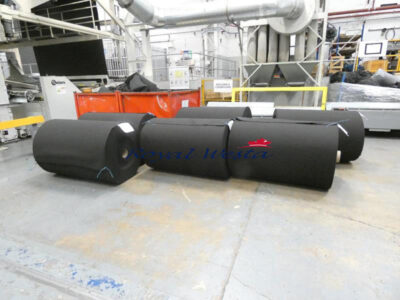

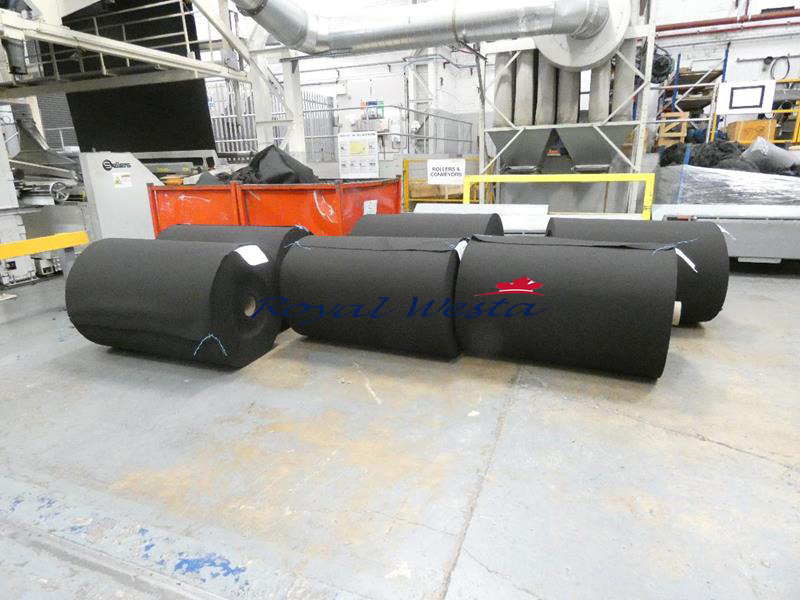

Currently being used in the production of: Automotive Nonwoven Velour Fabrics
Additional information:
Status: Still operating and can be seen running
Condition:Complete and in good working condition
Delivery: End March 2025 onwards
Transport: 25 x 240ft Container (Estimated)
