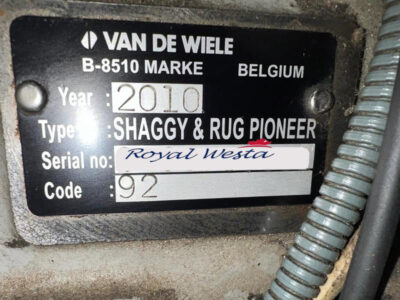

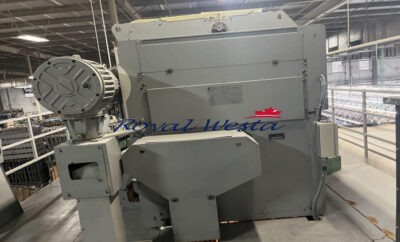

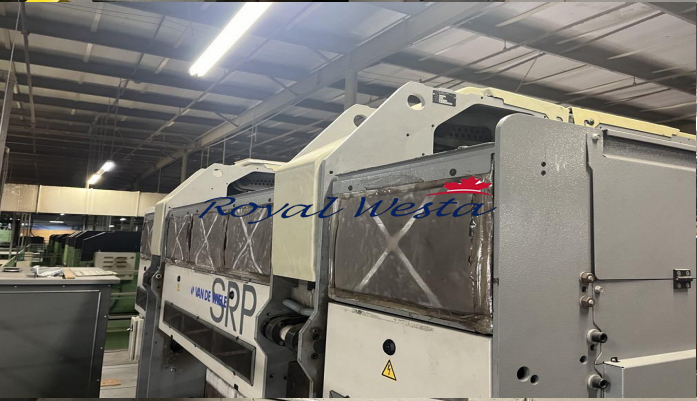

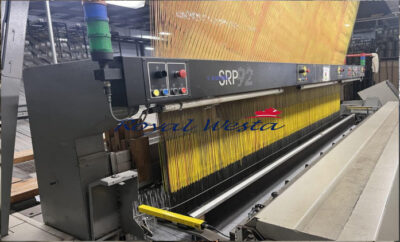

Van De Wiele SRP

QUANTITY: 1
YEAR: 2010
FABRIC WIDTH: 400 CM
RAPIER GUIDING: Air Cutions
RECEIVING RAPIER OPENING: POSITIVE OPENING
WEAVE STRUCTURE: Shag

TAKE UP
FOLDING SYSTEM TO TAKE UP CARPETS

KNIFE STONES
NUMBER OF STONES: 2 ROUND STONES & 2 FLAT STONES

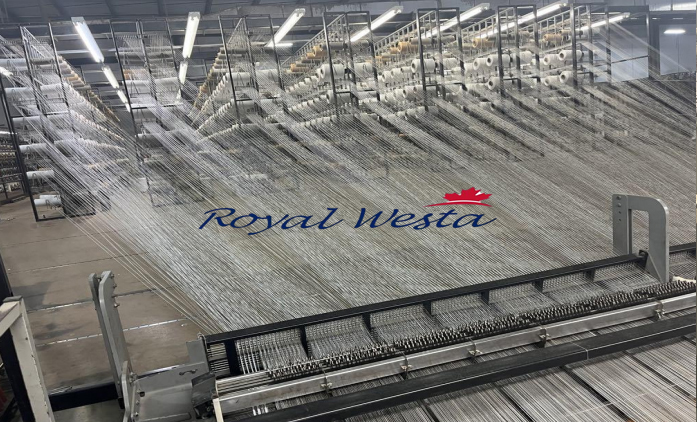

WARP BEAM STAND
TYPE OF BEAM STAND: LOW BEAM STAND FOR 4 BEAMS
MAXIMUM BEAM DIAMETER: 1250 MM
BEAM LET-OFF SYSTEM: MOTOR DRIVEN
ADJUSTMENT TENSION: WITH AIR

REED
NUMBER OF REEDS: 1
CARPET DENSITY: 160 d/m
CARPET WIDTH: 4000 mm
PITCH IN PILE PART: 640 / 4020
WIDTH OF SELVEDGE: 2 x 50 mm

PREWINDER
NUMBER OF PREWINDERS: 2 PREWINDERS

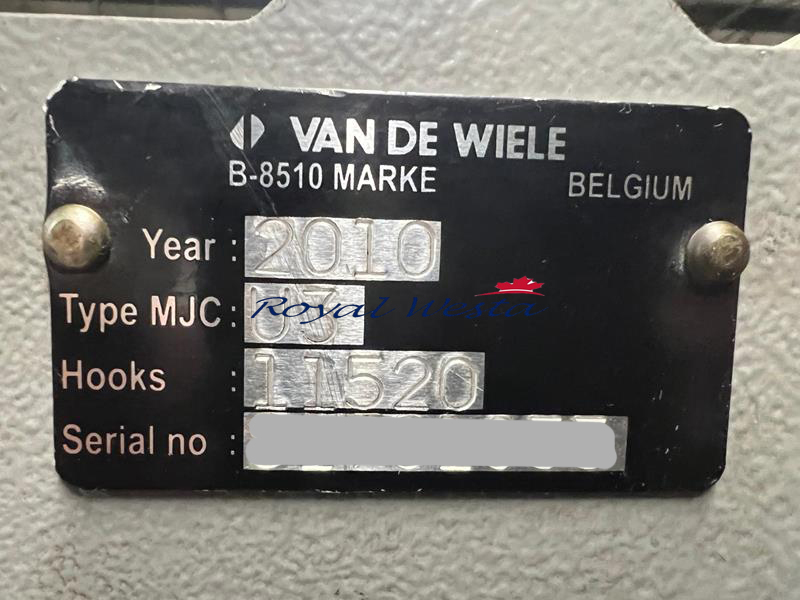

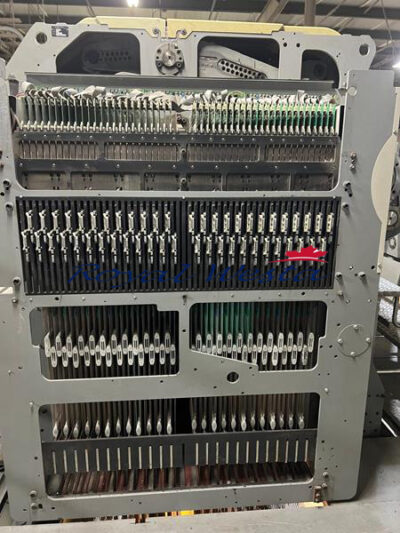

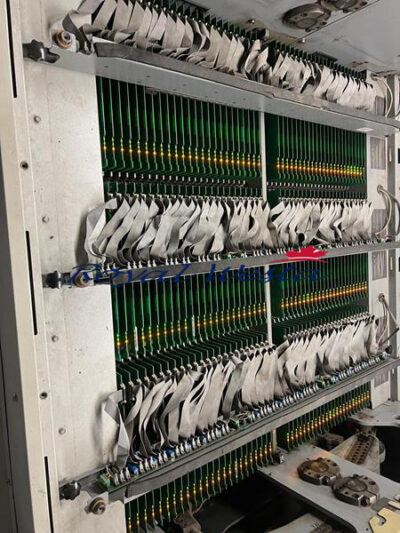

ELECTRONIC JACQUARD MACHINE
NUMBER OF HEADS: 1 MJC ELECTRONIC HEAD
NUMBER OF SOLENOIDS USED: 5120
WEAVE STRUCTURES: 1/2 V WEAVE STRUCTURE INCORPORATED

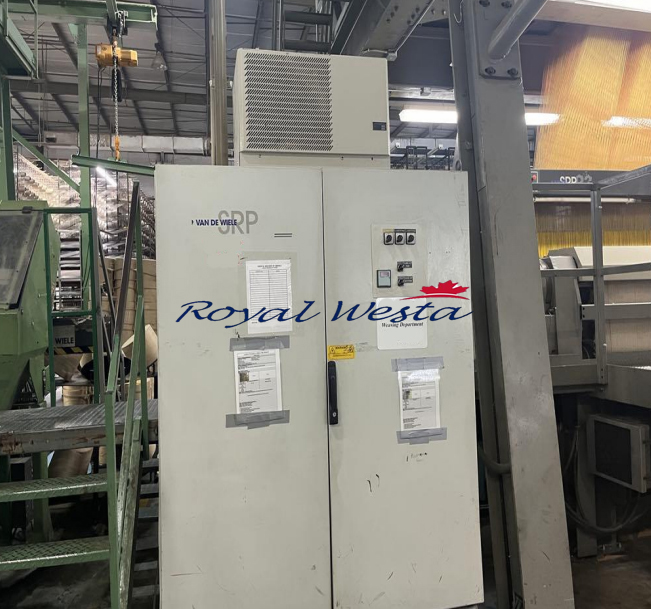

CONTROLLER: 1 HMI

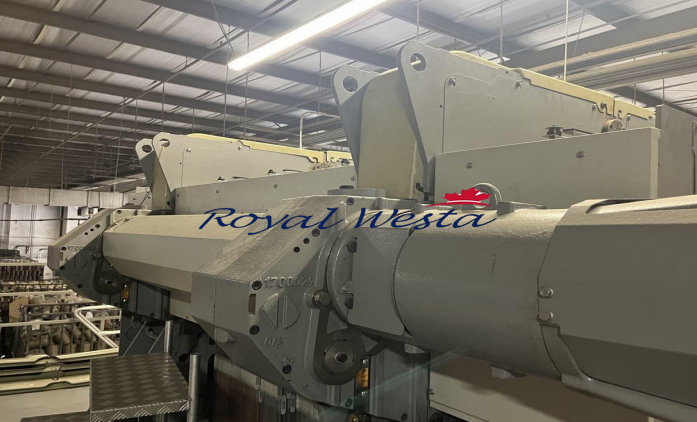

DRIVE FOR JACQUARD: CARDAN DOUBLE SIDED

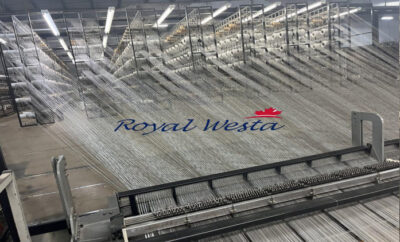

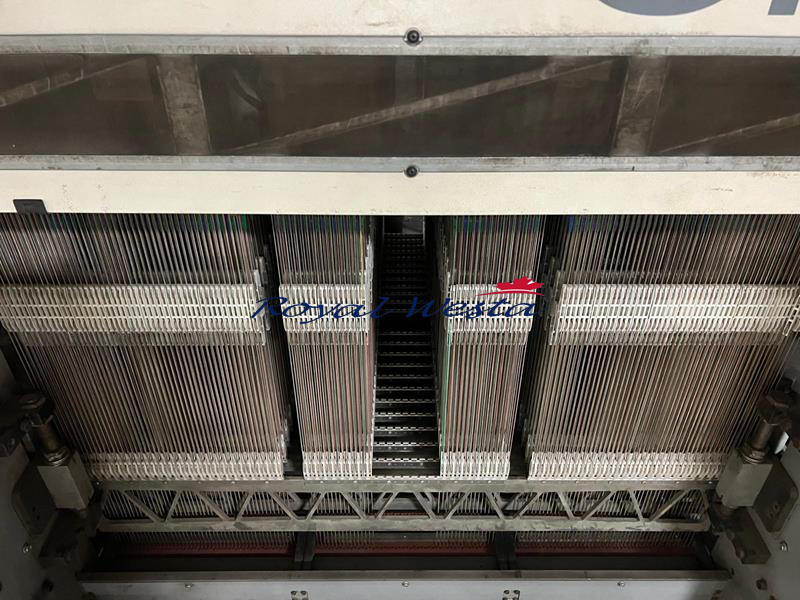

HARNESS
NUMBER OF COLORS: 8 COLORS
NUMBER OF HARNESS CORDS: 5120
RETURN: STANDARD SPRINGS

GROUND WARP FRAMES
DRIVE OF FRAMES: FROM BOTTOM
HEALD LENGTH: 740 mm 380 R
NUMBER OF FRAMES: 6 FRAMES
GROUND WEAVE STRUCTURE: 2 X (1/1) + 4 X (2/2)

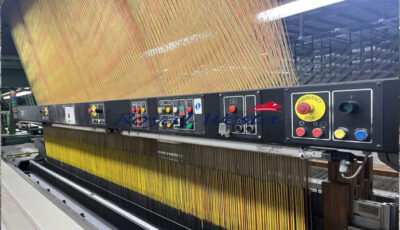

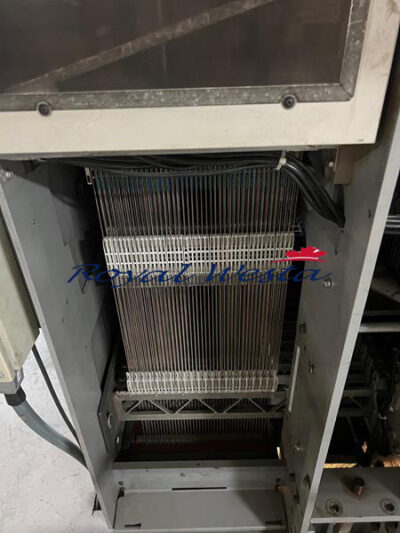

STOP MOTION
NUMBER OF PILE STOP MOTION: 1 WITH 5120 DROP WIRES
NUMBER OF WARP STOP MOTION: 1 FOR TOP & 1 FOR BOTTOM
